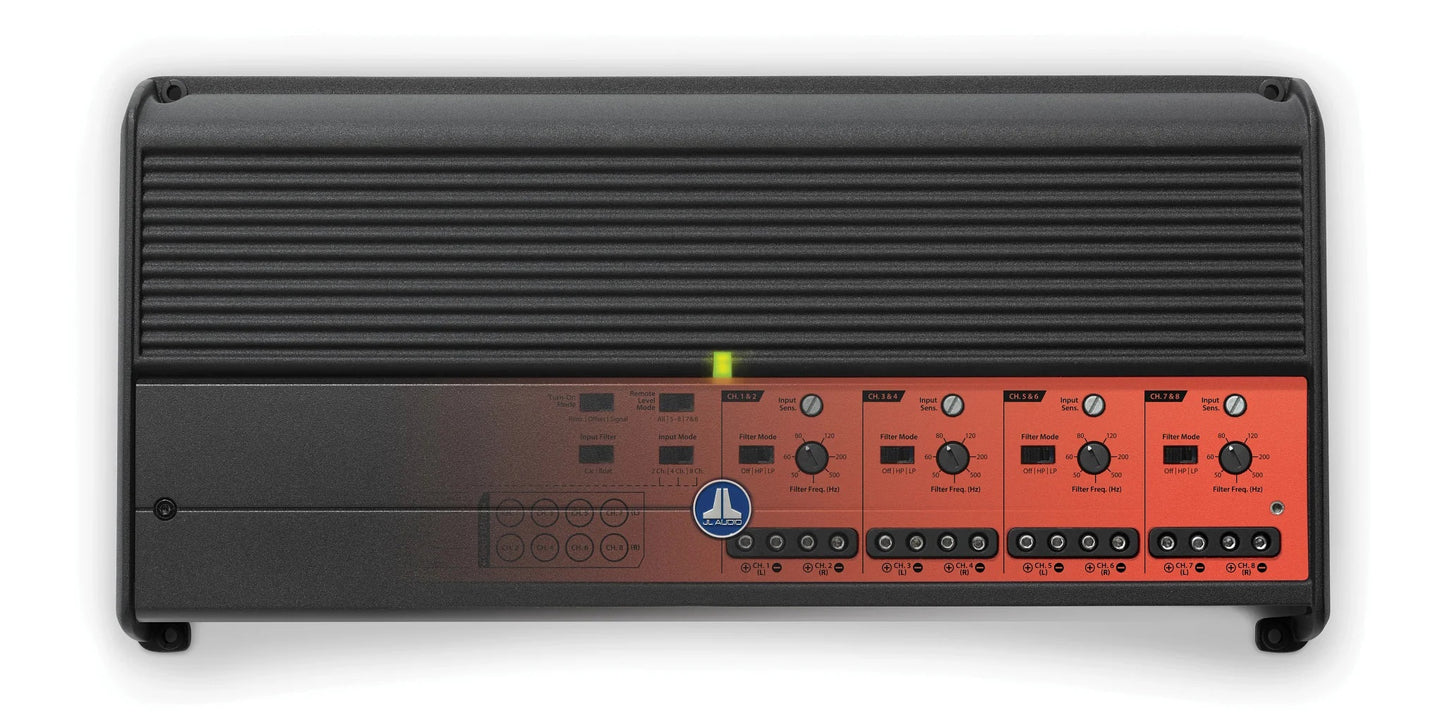

JL Audio XDM800/8-24V 8 Ch. Class D Full-Range Car/Marine Amplifier, 800 W, For 24V Systems

Model: XDM800/8-24V

For 24V systems only:,/b> 8-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 8 @ 2 ? / 75 W x 8 @ 4 ? - 14.4V

The ultra-versatile XDM800/8-24V delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100 watts to each of its channels @ 2 ohms (28.8V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM800/8-24V is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM800/8-24V includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the driver's seat or cockpit.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 volt may result in damage to the product and will void the warranty.

Specifications

Rated Continuous (RMS) Power @ 28.8 V

@ 4 Ohms
75 W RMS x 8

@ 2 Ohms
100 W RMS x 8

Bridged @ 4 Ohms
200 W RMS x 4

Rated Continuous (RMS) Power @ 25 V

@ 4 Ohms
60 W RMS x 8

@ 2 Ohms
90 W RMS x 8

Bridged @ 4Ohms
180 W RMS x 4

General Specifications

Frequency Response
12 Hz - 22 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 Ohms
>150 / 50 Hz

Damping Factor @ 2 Ohms
>75 / 50 Hz

THD+N @ Rated Power
<1% @ 2 Ohms per Ch.

Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS

Min.Copper Power / Ground Wire Gauge
4 AWG wire

Fuse Rating
40 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s)
Low-Pass or High-Pass

Filter Slope(s)
12 dB/octave

Filter Frequency Range
50 Hz - 500 Hz

Detented, Calibrated Filter Freq. Potentiometers
Yes

Filter Defeat Function
Yes

Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)

Remote Level Modes
2 or 4 or All Channels

Channel Input Mode Switch
Yes (2/4/6/8 ch.)

Pass-Through Preamp Output
None

Source Channel Selection for PreOuts
N/A

What's in the Box:

• XDM800/8-24V Amp


• Wrench


• Badge
