Lenco 9"x12" Performance Trim Tab Kit 12v Requires Switch

Lenco 9"x12" Performance Trim Tab Kit 12v Requires Switch

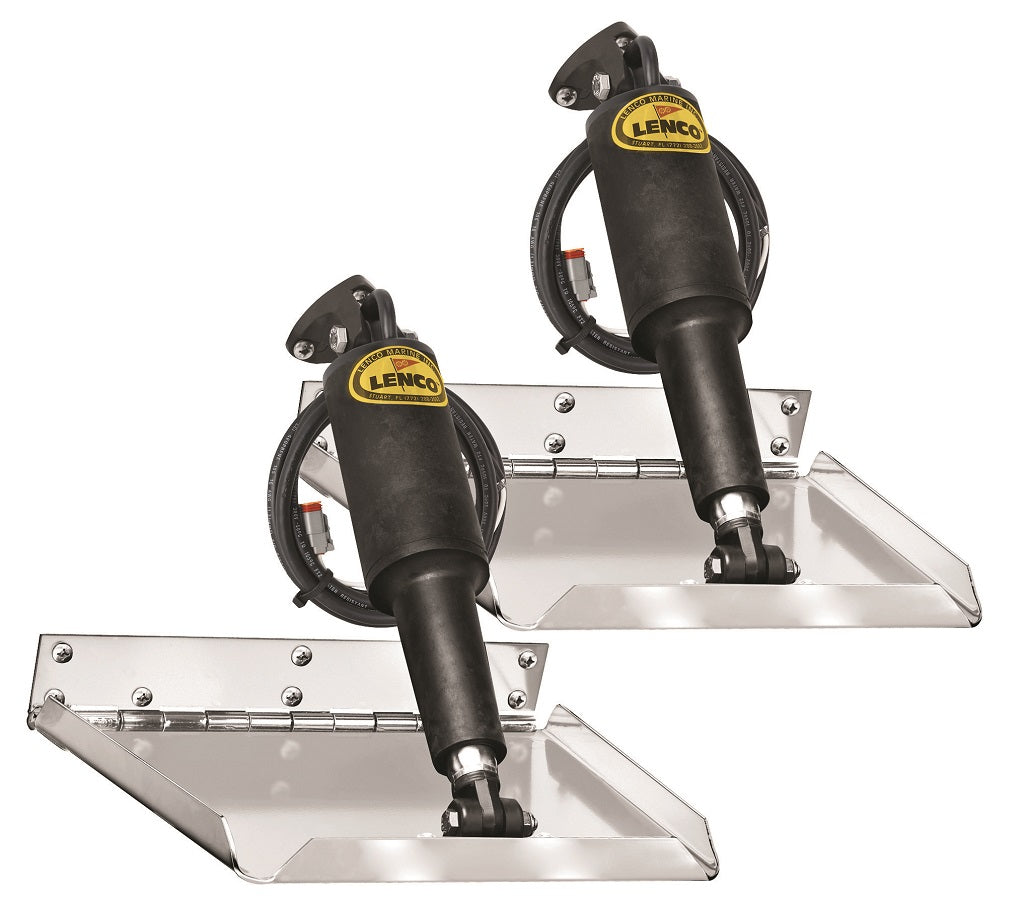

Lenco 9" X 12" Perfomance Trim Tab Kit - Requires Switch

Lenco's first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin.

Plane Size L x W
9" x 12"

Boat length
16' - 26'

Hinge Height
2"

Min Transom Height
13.5"

Voltage
12vDC

Finish
Electro-Polish

What's in the Box:

• (2) 12-gauge stainless steel Electro-Polished blades


• (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors


• (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length


• (2) 15085-001 upper mounting brackets with gland seal


• (2) 50014-001 lower mounting brackets


• Lenco owner’s/installation manual


• Stainless steel mounting hardware
