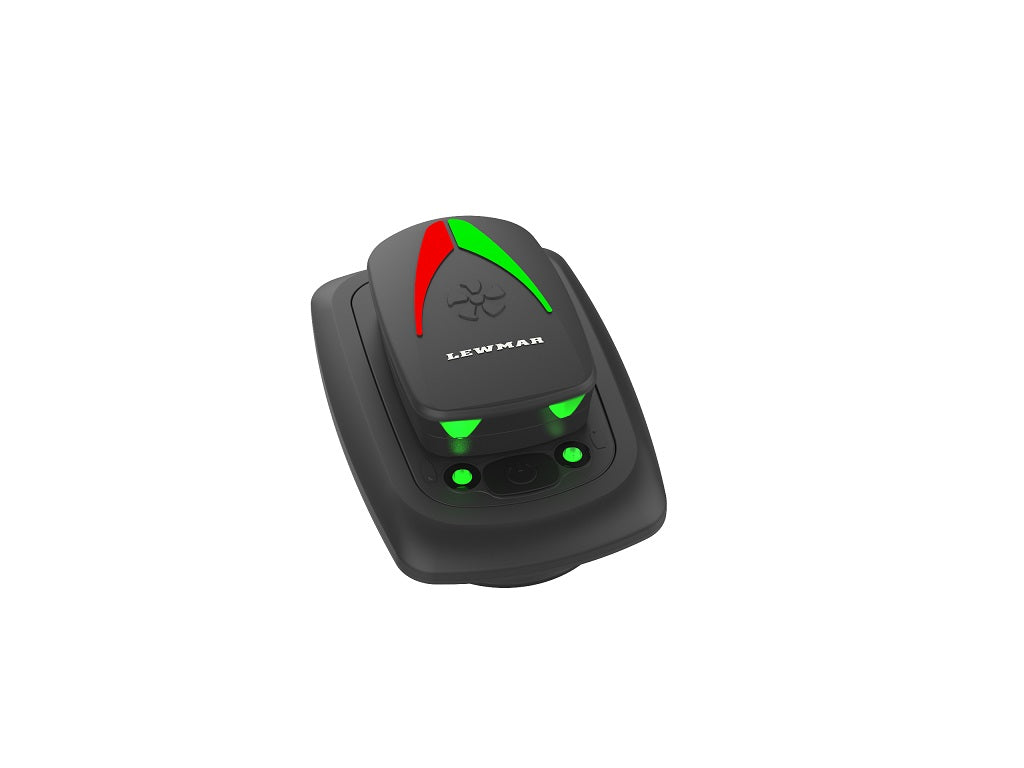

Lewmar 589222 Dual Thruster Control Pad Gen2

Lewmar 589222 Dual Thruster Control Pad Gen2

Lewmar 589222 Gen2 Dual Thruster Control Pad

• Ergonomic control ‘pad’ gives tactile feedback


• Membrane switch panel sealed from dust and moisture ingress


• Dual controllers give total control of vessel via multi-axis function pad


• 12-24V dual voltage supply


• Multi-function LED indicator displays system deployment, thruster operation, low voltage, motor temperature warnings & fault conditions.


• Upgrade kit allows installation of single or dual controllers into a thruster system with previous generation controllers


• Fit existing cut-out of Lewmar joysticks


• Removable cover

The controllers are designed for all Lewmar TT, RT, SRT & VRT thrusters fitted with a blue box and can be fitted to thrusters fitted with a black-box using a controller adapter.

The controllers are installed without the need for rear access and feature a snap-on bezel to neatly hide the mounting screws. A cover is also included, providing additional security against accidental use and giving extra environmental protection. If replacing a previous generation touch panel, joystick panel or dual joystick panel, the existing mounting hole and fixing screw positions can be reused.
