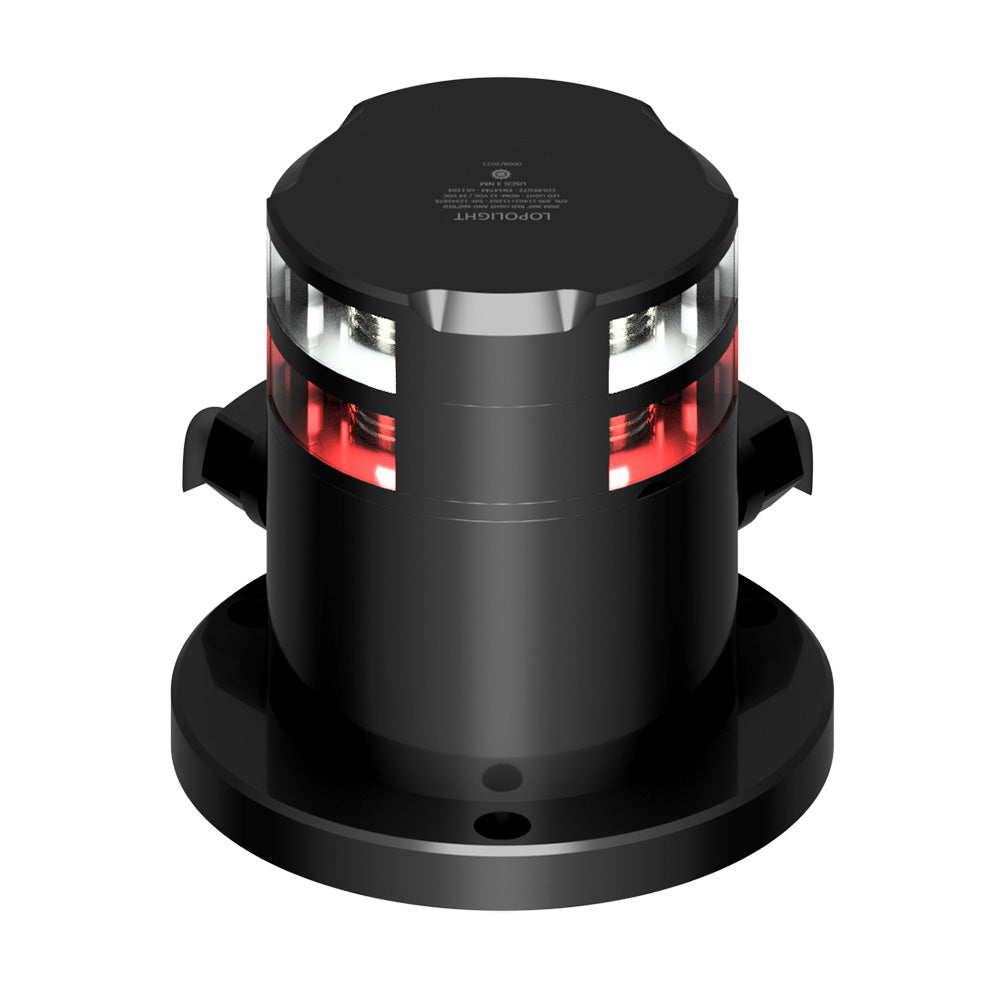

Lopolight 2nm 360 Degree Red + 2nm 360 Degree - White Lights

2nm 360 Degree Red + 2nm 360 Degree - White Lights

Features:

• Horizontally mounted on POM base (IP68)


• Cable direction side


• Incl. HDPE base plate


• Quality cable glands - 2 sizes included:


• 7-13mm (1/4"-1/2") cable diameter


• 4.5-10mm (5/32"-3/8") cable diameter

Specifications:

• Light Color: Red


• Dimensions metricØ92,5mm x 96,5mm


• Certification: This Navigation Light is certified by DNV, the Declaration of Conformity and the certificates can be found on www.lopolight.com under Support


• Intensity: >5.4cd


• Dimensions imperial: Ø3.6" x 3.8"


• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Visibility: 2nm


• Operating temperature: -25°C to 55°C


• Mounting: Horizontal


• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane


• Operating Voltage: 10-32VDC


• EAN: 5704438022966


• IP rating: IP68


• Power draw (W): 2,1


• Connection: Plug connector


• Current consumption (mA @ 12VDC): 150


• Current consumption (mA @ 24VDC): 85


• Vessel size: Under 12M,12-20M,20-50M


• Min. feed wire gauge: 0.5mm2 AWG22


• Weight (Kg):1.22 Kg


• Weight (Oz): 43.03 Oz
