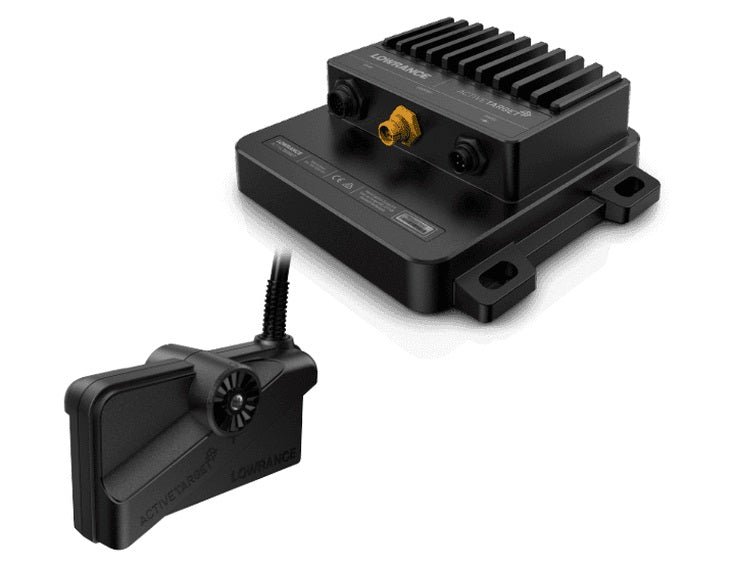

Lowrance ActiveTarget Live Sonar System

Model: 000-15593-001

• Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view — an ultra-wide, overhead view in front of your boat


• See how fish are positioned in and around structure and watch them respond to your lure as it happens


• High-resolution live images remove the guesswork from sonar interpretation


• Know whether fish are active


• Compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS


• Simrad Compatibility: Software 20.1 and above NSS evo3 & NSS evo3S, NSO evo3 & NSO evo3S (MFD & MPU)

Watch high-resolution images of fish movements — tracking them as they swim in and around cover with ActiveTarget Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment — information that is harder to get from traditional sonar or structure imaging.

Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.

ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fishfinder/chartplotters and Simrad Compatibility: Software 20.1 and above NSS evo3 & NSS evo3S, NSO evo3 & NSO evo3S (MFD & MPU)

Specifications

Environmental

Storage Temperature
-30 C To +70 C (-22 F To +158 F)

Operating Temperature
-15C To +55C (5 F To 131 F)

IP Class
IP67

Electrical

Power Supply
12 / 24 V DC

Operating Voltage
10.8 V DC — 31.2 V DC

Current Drain (Maximum)
1.5A @ 13.8V

Reverse Polarity Protection
Yes

Fuse Rating
3 A

Physical

Weight
1.86 kg (4.12 lbs)

TRANSDUCER
Environmental

Storage Temperature
-30 C To +70 C (-22 F To +158 F)

Water Temperature / Operating
0 C To +35 C (32 F To 95 F)

Physical

Weight
1.21 kg (2.67 lbs)

Cable Length
7.62 m (25 ft)

Mounting Options

Trolling Motor Shaft Mount
Included

Trolling Motor Forward/Down Mount
Included

Trolling Motor Scout Mount
Included

Transom Mount
Sold Separately

Beam Angle
18 Degrees x 135 Degrees

What's in the Box:

• ActiveTarget Black Box Only


• ActiveTarget Transducer Only


• ActiveTarget Trolling Motor Shaft Mount Kit


• ActiveTarget TRM FWD/Down Mount Kit


• ActiveTarget Trolling Motor Scout Mount Kit


• Power Cable


• 15' Ethernet Cable
