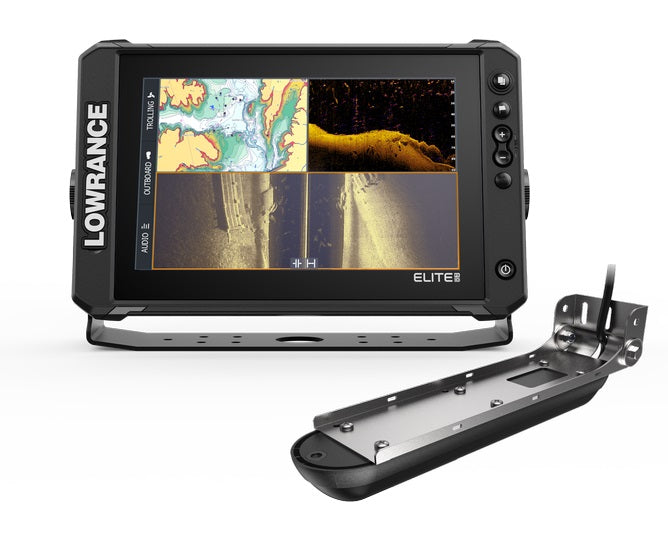

Lowrance Elite™ FS 10 with Active Imaging 3-in-1 Transducer (US/CAN)

Model: 000-16430-001

• ActiveTarget™ 2 Live Sonar ready


• Active Imaging 3-in-1 ready


• Active Imaging HD 3-in-1 ready with a S3100 Sonar Module


• FishReveal™


• Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics® and more

The Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD* and preloaded C-MAP® Discover Onboard charts — to help you make the most of your time on the water. *Active Imaging HD requires S3100 Module

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTarget™ 2 live sonar and extreme high-resolution Active Imaging™ and Active Imaging HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ with FishReveal™ to preloaded C-MAP® Discover Onboard Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

Fish smarter when you know exactly what fish are doing — in real time — with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Note: No splitscreen options in 10 & 12 Models

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™ with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Discover Onboard inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada. *Active Imaging HD requires S3100 Module

Specifications

DISPLAY

Resolution
1280X800

Viewing angle in degrees
80° top/bottom, 80° left/right

Brightness
> 1200 nits

Touch screen
Multi-touch

PHYSICAL

Weight
3.66lb (1.66kg)

Compass Safe Distance
2.1 ft (65 cm)

ENVIRONMENTAL

Operating temperatature range
-15°C to +55°C (5°F to 131°F)

Storage Temperature
-20°C to +60°C (4°F to 140°F)

Waterproof Rating
IPX6 and IPX7

ELECTRICAL

Supply Voltage
12 V DC (10 - 17 V DC min - max)

Recommended Fuse Rating
3 Amps

Power Consumption Maximum
34.5 W (2.5 A at 13.8 V DC)

INTERFACE/CONNECTIVITY

NMEA 2000
1 port (Micro-C connector)

Data Card Reader
1x slot (microSD, SDXC)

Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)

Sonar
1 port (9-pin connector)

WiFI Internal
802.11b/g/n : No wireless networking between units

Bluetooth
4.0 with support for Bluetooth® Classic

GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

• Elite FS 10 Display


• ActiveImaging™ 3-IN-1 Transducer w/ 7.6m (25ft) cable


• Elite™ FS 10 Suncover


• HDS-10 PRO / Elite FS-10 Bracket


• Lowrance Power Cable


• Fuse and Fuse Holder


• Corner Clip ELITE-7, 9, 10, and 12 FS
