Lowrance Elite FS 7 All Season Pack

Lowrance Elite FS 7 All Season Pack

Model: 000-15885-001

• ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar


• Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays


• High Resolution Multi-touch screen


• Preloaded with C-MAP Contour + charts (AMER,APAC)


• NMEA 2000®: Support and control NMEA 2000® devices


• Halo Radar: Drive Lowrance radar domes directly


• Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts

Specifications

Environmental

Operating temperature range
-15°C to +55°C (5°F to 131°F)

Storage temperature
-20°C to +60°C (4°F to 140°F)

Waterproof rating
IPX6 and IPX7

Electrical

Supply voltage
12 V DC (10 - 17 V DC min - max)

Recommended fuse rating
3 A

Power consumption (maximum)
28 W (2 A at 13.8 V DC)

Display

Resolution
800 x 480 pixels

Viewing angles in degrees
50° top, 60° bottom, 70° left and right

Brightness
> 1200 nits

Touch screen
Multitouch

Physical

Weight (display only)
0.9 kg (1.9 lbs.)

Compass Safe Distance
0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000®
1 port (Micro-C connector)

Data card reader
1x slot (microSD, SDXC)

Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)

Sonar
1 port (9-pin connector)

WiFI Internal
802.11b/g/n : No wireless networking between units

Bluetooth®
4.0 with support for Bluetooth® Classic

GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

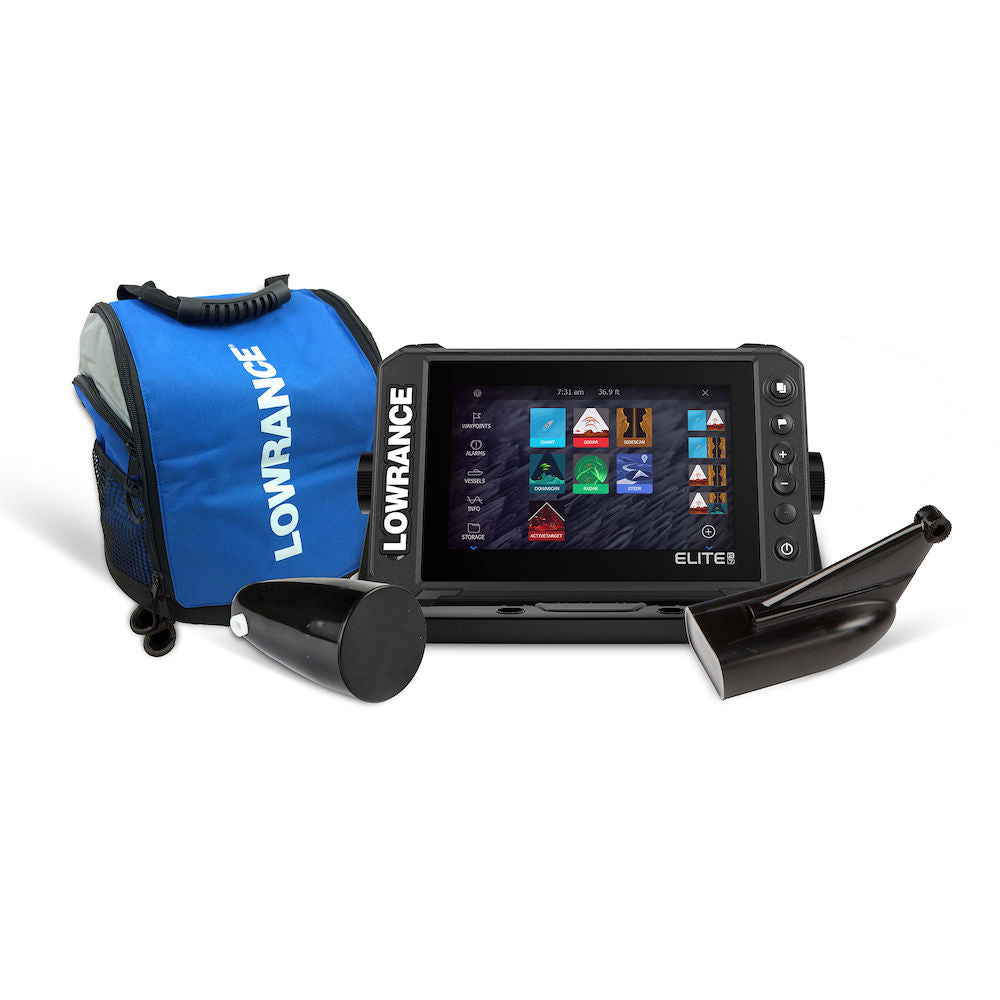

What's in the Box:

• Elite FS 7 No Transducer Display


• Carrying Bag


• HDI Skimmer Transducer


• Suction Cup Mounting Kit


• Ice Transducer


• Battery and Charger
