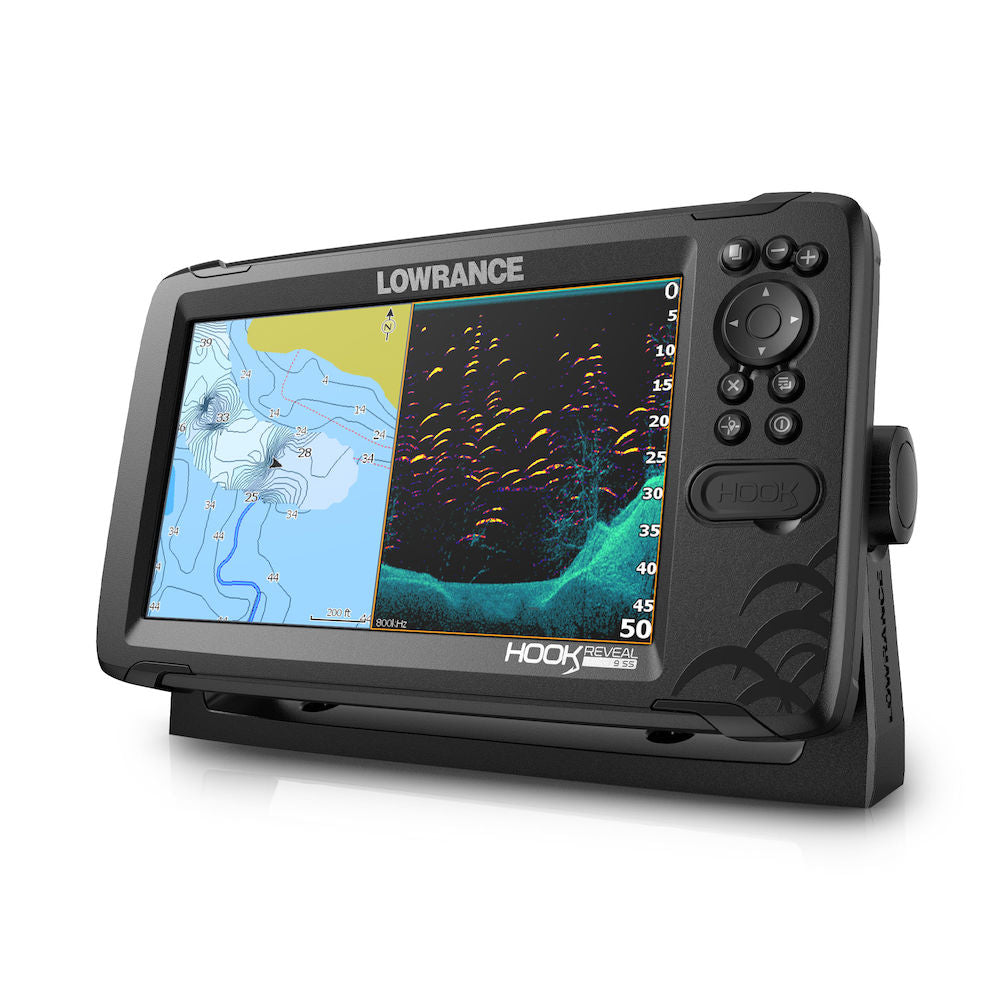

Lowrance HOOK Reveal 9 50/200kHz with USA/Canada Navionics Nav+

Model: 000-15533-001

• Fish Reveal


• Genesis Live Real-Time Mapping


• Autotuning sonar


• Double the sonar coverage of other fishfinders


• 50/200 HDI transducer with Low/High CHIRP and DownScan Imaging


• USA/Canada Navionics Nav+


• SolarMAX Display


• New fish-finding color palettes


• Optimized keypad with one-touch access to key features


• Mapping options include C-MAP, C-MAP Genesis, Navionics® and more


• microSD card slot


• Easy front-dash or gimbal-bracket mount

From the world’s best-selling series of fishfinders comes HOOK Reveal, a new fishfinder/chartplotter with one of our most popular features — FishReveal. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging splitscreen display.

Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. What’s more, you’ll cover more water in less time with double the sonar coverage of other fishfinders, and have an easier time accessing key features with an optimized keypad and simple menu layout.

HOOK Reveal comes with a loaded combination of navigation tools to get you on the fish, including a preloaded US Inland fishing map with 1-foot contours on 4,000 lakes and Genesis Live real-time mapping. Find productive fishing areas faster with the built-in fishing map or map uncharted areas — down to ½-foot contours — with Genesis Live.

Specifications

Display

Backlight Color
Pure White LED

Resolution
800 x 480

Screen Brightness
>1000 NITS

Size and Type
9" (228 mm)SolarMAX Display

Viewing Angles
80° top/bottom, 85° left/right

Electrical

Power Consumption, max.
1.50A @ 13VDC with backlight on full

Power Consumption, min.
1.50A @ 13VDC with backlight on full

Power Consumption, typical
1.50A @ 13VDC with backlight on full

Recommended Fuse Rating
5A

Supply Voltage
12v DC (10.8-17VDC)

Humidity
60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range
5°F to 131°F (-15°C to 55°C )

Shock and Vibration
100,000 cycles of 20 G

Storage Temperature Range
4°F to 140°F (-20°C to 60°C )

Waterproof rating
IPX7 with card door closed

GPS

Correction
DGPS, WAAS

Time to First Fix
30s

MFD

Cartography included
Navionics: Nav + card included

Cartography supported
C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay)

External Storage
Micro SD Card(32 gb Max)

GPS
1 Hz GPSGLONASSWAASEGNOSMSAS

Sonar (inc. compatibility)
Integrated:CHIRPBroadbandDownScan

Waypoints, Routes, Tracks
3000 Waypoints100 Routes100 Trails

Compass Safe Distance - Metric, imperial
12" (300mm)

Physical

Dimensions (W x H x D)
10.92" (277.3 mm) x 6.90 (175.2 mm) x 4.42" (112.3 mm)

Mounting Type
Gimbal Bracket,Front Dash, Flush Mount

What's in the Box:

• HOOK REVEAL 9


• US/Canada Navionics Nav + card included


• HOOK2 9" BRACKET & Knobs


• HOOK2 POWER CABLE (5/7/9/12)


• HDS FUSE & FUSE HOLDER


• HOOK2 7/9/12 CORNER CLIPS


• HOOK REVEAL 50/200 HDI XDCR PK
