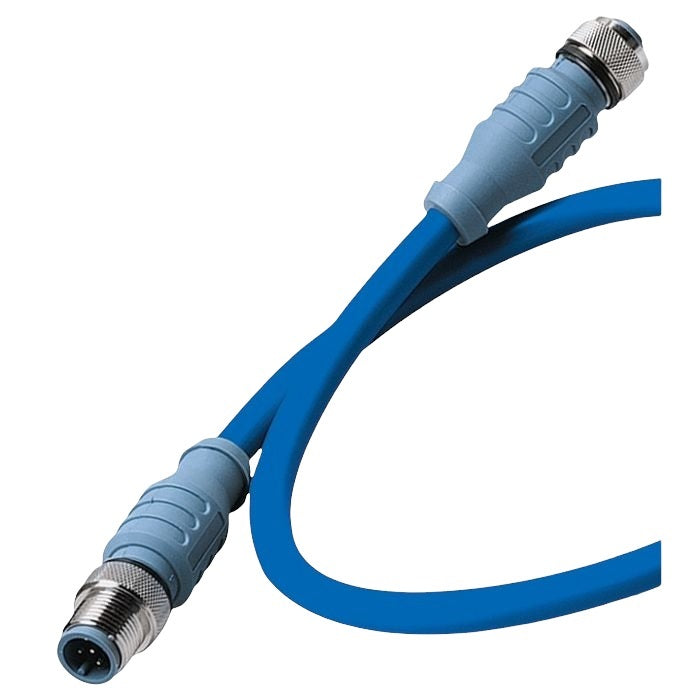

Maretron Blue Mid Cable 8M Male To Female Connector

Maretron Blue Mid Cable 8M Male To Female Connector

Maretron Blue Mid 8 Meter Cable

Model: DM-DB1-DF-08.0
UPC: 873804001968

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Specifications

Mechanical
Contact Carrier Mat/Color
Thermoplastic PUR/Blue

Molded Body Mat/Color
Thermoplastic PUR/Blue

Contact Mat/Plating
Brass/Gold

Coupling Nut Mat/Plating
Brass/Nickel

Connector Outside Diameter
0.59 in
Electrical
Current rating
4.0 Amps

Voltage rating1
250v
Cable
Outer Jacket Mat/Color
PVC/Blue

Conductor Insulation Material
PE (data pair), PVC (power pair)

Number of Conductors
2x16 (1.29mm) AWG,
2x20 (0.81mm) AWG,
20 (0.81mm) AWG Drain Wire

Shielding (3 Levels)
Foil (Overall), Foil (Power Pair), Foil (Data Pair)
Enviromental
Protection class
IEC IP68, NEMA 1,3,4,6P

Temperature rating
-40°C to 80°C to (-40°F to 176°F)
Approvals
(Cable) UL
PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V

(Cable) CSA
CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4

NMEA
NMEA 2000® Approved

IEC
IEC 61162-3
