Maretron

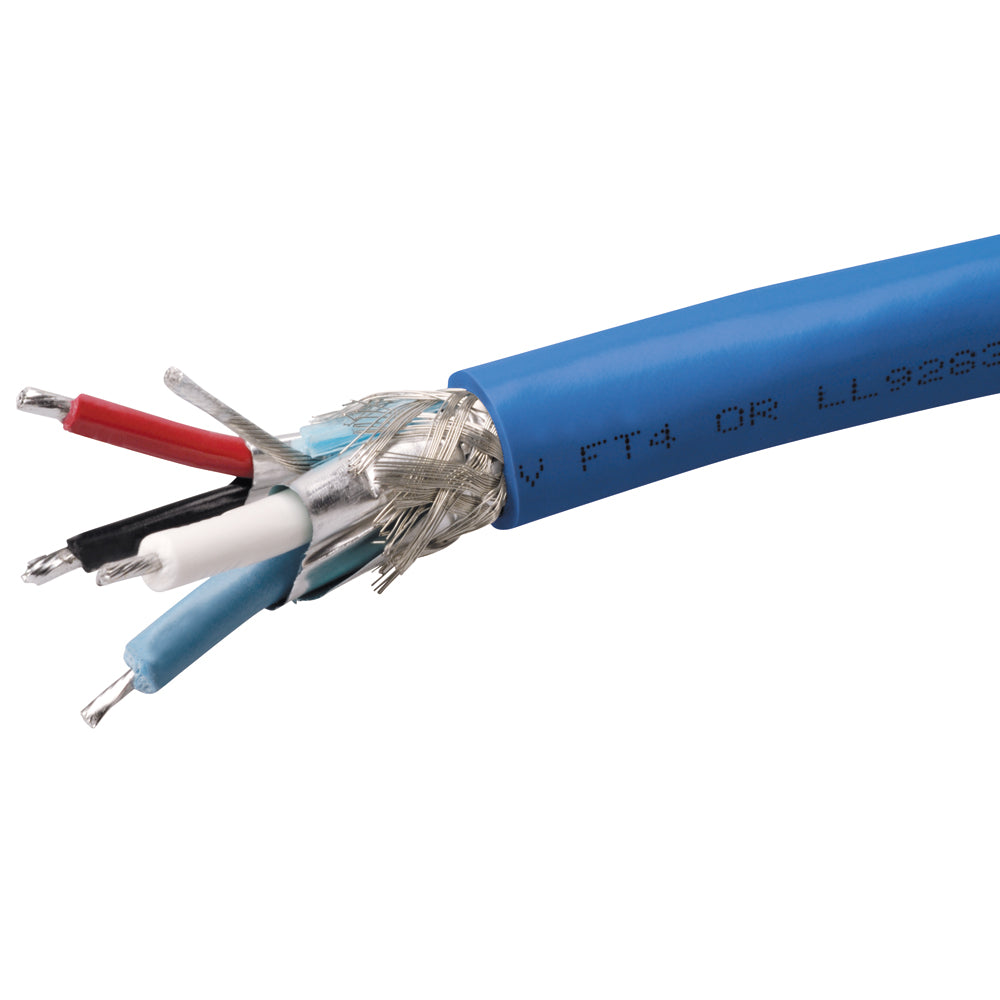

Maretron Mid Bulk Cable - 100 Meter - Blue

Maretron Mid Bulk Cable - 100 Meter - Blue

Regular price $515.95 USD
Regular price $515.95 USD Sale price $515.95 USD
Sale Sold out
Shipping calculated at checkout.

Specifications

Overall

  • Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1

  • Insulation Material: PE (data wires), PVC (power wires)

  • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair

  • Wire: 2x16 (1.29mm) AWG

  • Resistance/Conductor: 4.1 Ohms/1000 ft max

  • Max Amperage: 14 Amps
  • Color Code: Red/Black

    Data Pair

  • Wire: 2x20 (0.81mm) (AWG)

  • Characteristic Impedance: 120 Ohms +/- 10%

  • Capacitance: 10.75 pF/ft

  • Color Code: White/Blue

    Approvals

  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

  • NMEA: NMEA 2000 Approved

  • IEC: IEC-61162-3
  • View full details
