Maretron

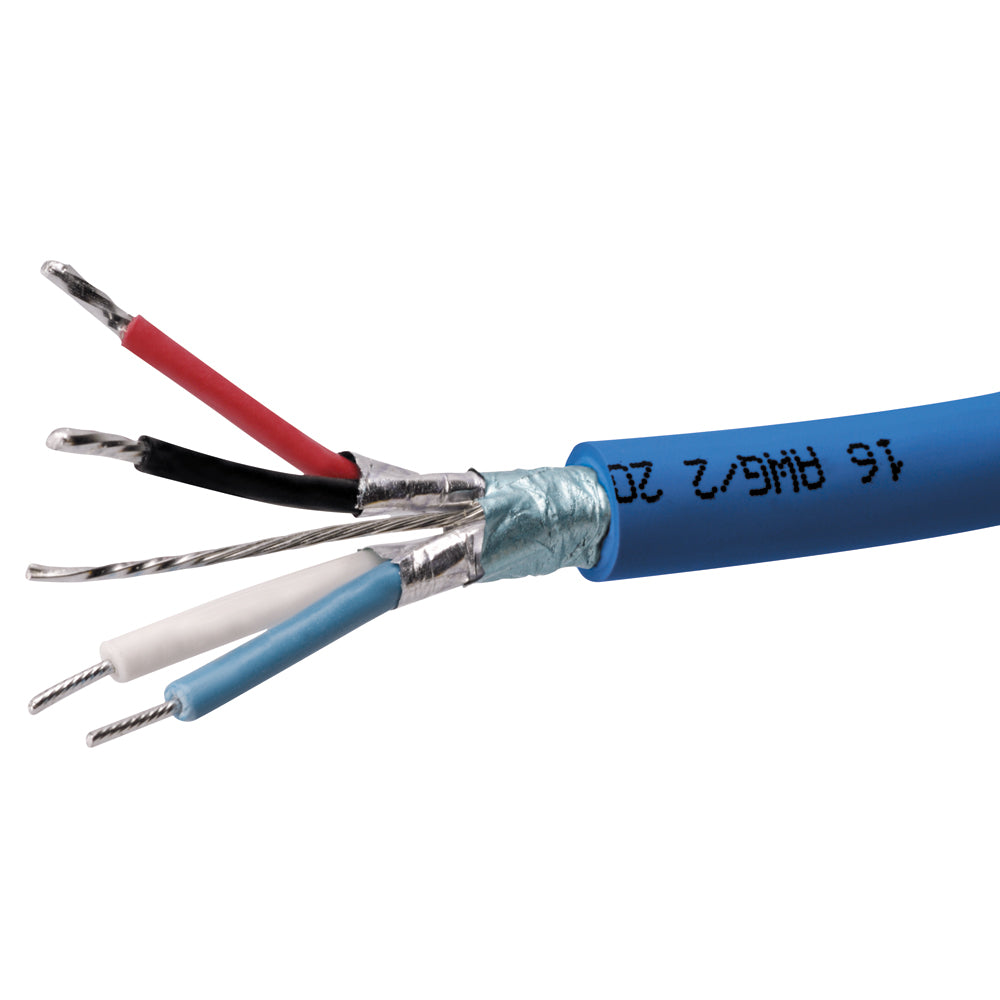

Maretron Mini Bulk Cable - 100 Meter - Blue

Maretron Mini Bulk Cable - 100 Meter - Blue

$764.95 USD
$764.95 USD $764.95 USD
Sale Sold out
Shipping calculated at checkout.

Maretron Mini Bulk Cable - 100 Meter - BlueSpecifications

Overall

  • Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1

  • Insulation Material: PE (data), PVC (power)

  • Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire

  • Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair

  • Wire: 2x15 (1.45mm) AWG

  • Resistance/Conductor: 3.44 Ohms/1000 ft max

  • Max Amperage: 16 Amps - NB1, 14 Amps - NG1

  • Color Code: Red/Black

    Data Pair


  • Wire: 2x18 (1.02mm) AWG

  • Characteristic Impedance: 120 Ohms +/- 10%

  • Capacitance: 12 pF/1000 ft Max

  • Color Code: White/Blue

    Approvals

  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 APPROVED

  • IEC: IEC-61162-3
    • View full details
