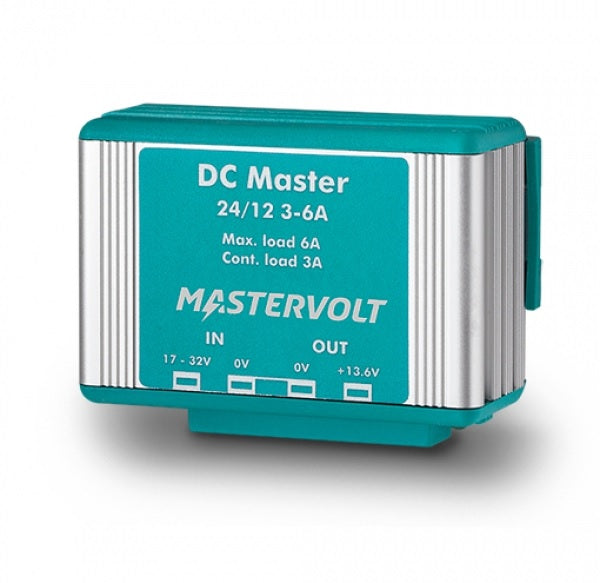

Mastervolt DC Master 24/12-3A 24VDC To 13.6 Vdc - 3A

Mastervolt DC Master 24/12-3A 24VDC To 13.6 Vdc - 3A

Mastervolt DC master 24/12-3A DC-DC Converter, Non-Isolated

• Recreational and semi-professional use.


• Easy to install using included mounting bracket, screws and fasteners.


• Smart electronics mean no unnecessary heat generation.


• Continuous output.


• Two minutes of extra power for short power boosts.

Nominal output voltage
13.6 V

Max. output power
82W

Nominal output power
41W

Max. output current (for 2 min. intervals)
6A

Continuous output current
3A

Nominal input voltage
24V

Input voltage range
20-32V

Galvanic isolation
No

Stabilised
Yes

Approvals
CE, E-mark

Technical Specification

DC consumption
< 10 mA

Connections
Fast-on

Temperature range (ambient temp.)
-13 °F to 176 °F

Sound level
< 30 dBA at 1 mtr

Protection degree
IP53

Cooling
Natural cooling

Dimensions
2.6 x 3.4 x 2.0 inch

What's in the Box:

• DC Master 24/12-3A Non isolated


• Mounting bracket with fastenrs


• Documentation
