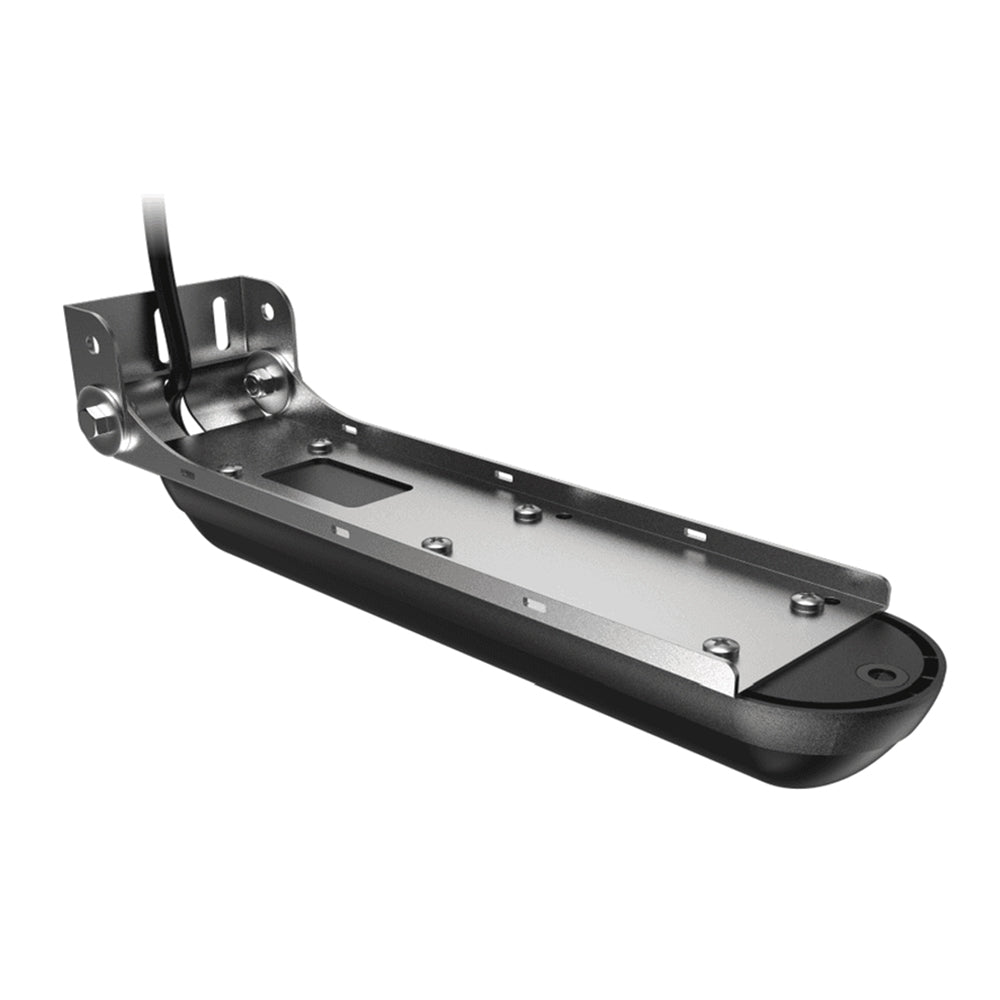

Navico Active Imaging 3-in-1 Transom Mount Transducer

Active Imaging 3-in-1 Transom Mount Transducer

See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Key Features:

• More refined detail and better range than any other imaging technology


• Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan


• Easier target identification with FishReveal™ Smart Target View


• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies


• Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and Simrad NSS evo3 and GO series displays

Environmental

• Operating temperature: -15°C to +55°C (+5°F to +131°F)


• Storage temperature: -30°C to +70°C (-22°F to +158°F)

Physical

• Cable length:   7.6 m (25 ft)


• Mounting options: Transom, flush step, and jackplate mounting


• Connector: 9 pin

Transducer

• Output: Traditional, SideScan imaging, DownScan imaging and temperature


• Frequency: Traditional: 200 kHz/High : Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz


• Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft)


• Operating speed: Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph)
