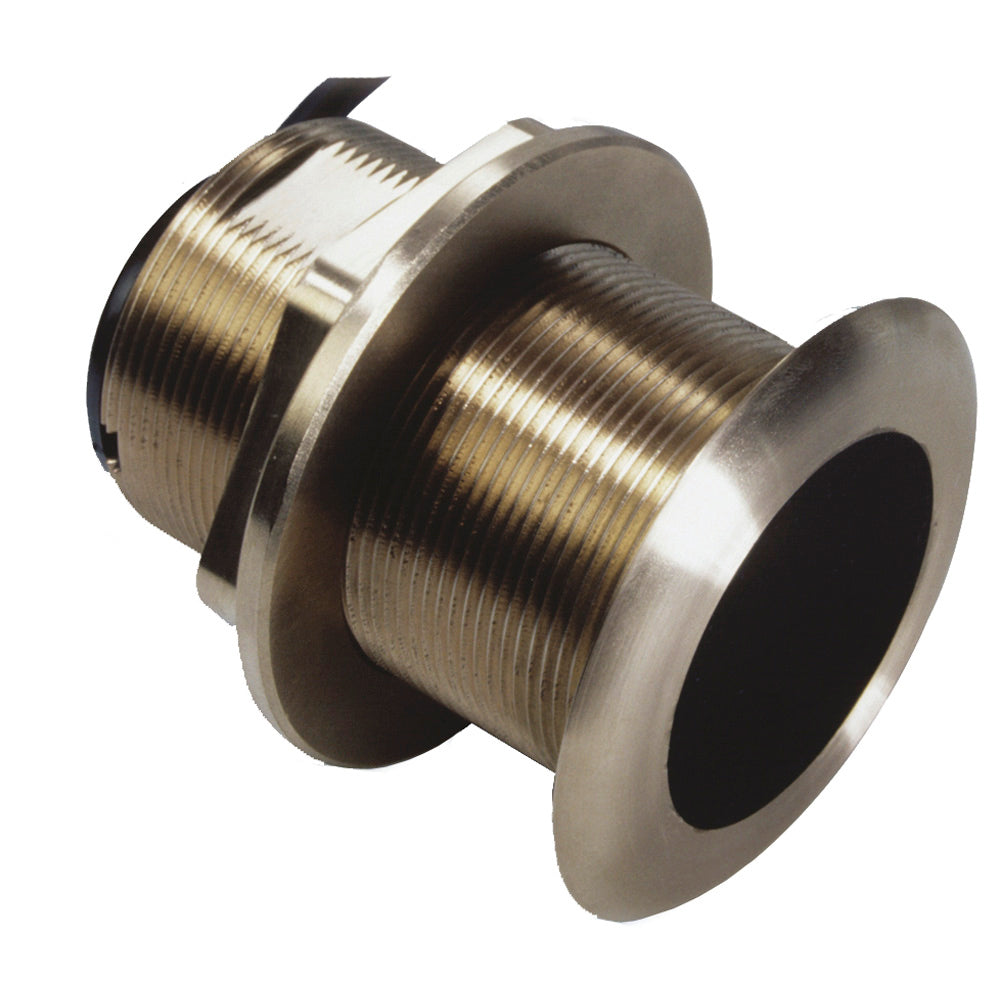

Navico B60-20, 20? Tilted Element Transducer

B60 Tilted Element™ 20°

20° titled version is designed for 16° - 24° deadrise angles


The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.

Features:

• Depth/Temp




• 50/200 kHz




• 600w RMS




• Mid-performance




• 7 Pin Blue Connector




• Bronze
