Newmar BB-8 Bus Bar

Newmar BB-8 Bus Bar

• Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16" studs on 1" centers in 1/4" thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16" ring terminals.
• One combination model features two 5/16" studs and eight #8 screws, accommodating multiple size wire terminals.
• All bus material is nickel-plated copper.
• A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
• The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.

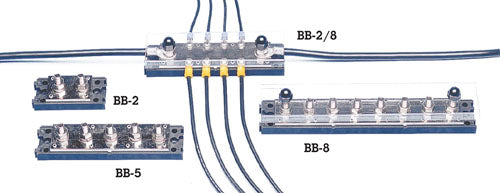

Model Qty. of 5/16" Studs Base Size BB-2 2 3 1/16" x 1 1/2" BB-2/8 2 plus 8 - #8 screws 6 1/16" x 1 1/2" BB-5 5 6 1/16" x 1 1/2" BB-8 8 9 1/16" x 1 1/2"
