Newmar CS-1 Connector Strip F/ 16G Wire

Newmar CS-1 Connector Strip F/ 16G Wire

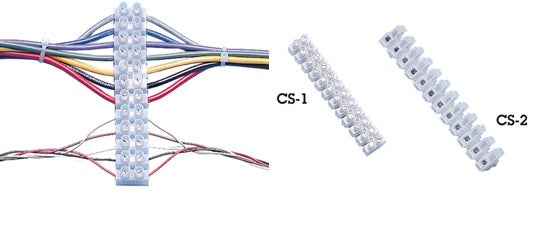

• Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.)
• Strips are easily cut to meet wiring requirements and space limitations.


Model # of Terminal Pairs Max Wire Gauge Max Amps* Size L X W X H CS-1 12 16 6 3.75" x .675" x .5" CS-2 12 14 10 4.5" x .75" x .75"
