Three Stage "Smart" Chargers

Phase Three "Smart" battery charging technology is now available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application from small recreational craft to large live-aboards, workboats and other commercial vessels. These chargers interact with batteries to put them through the optimum three stage charge process which provides for fastest recovery and ideal conditioning, maximizing battery performance and extending battery life.

A selector switch adjusts output voltage to adapt for gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries' ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features

• "Smart" circuitry provides three stage charging bulk, absorption, float.




• Wide model range covers battery system ratings from 14-950 amp-hours




• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages.




• Multiple isolated output banks; ammeter indicates total output current. (except PT-7)




• Optional sensor adjusts output voltage based on battery temperature. (except PT-7)




• Current limiting-prevents damage from overloading.




• Charger status clearly displayed with L.E.D. and/or audible indicators or optional remote panel.




• Use as a power supply; can power loads without a battery in line.




• Built to last rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry.




• Numerous Safety and EMC CompliancesTwo year parts and labor warranty




Models


12 Volt

24 Volt

32 Volt

PT-7

PT-24-8W

PT-32-25W

PT-14W

PT-24-13W



PT-25W

PT-24-20U



PT-40U

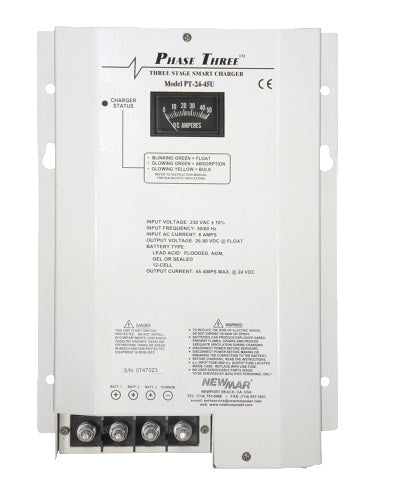

PT-24-45U



PT-80

PT-24-60W



PT-24-95U



Detailed specifications below.



Specifications


12 Volt Models

PT-7

PT-14W

PT-25W

PT-40W

PT-80

Input VAC (50-60 Hz.)

88-132 or
176-264

85-264

90-132 or
180-264

85-135 or
170-270

90-264

Input Amps @ Full Load



@ 115 VAC

2

2.8

6.5

8.5

12

@ 230 VAC

1

1.4

4

4.3

7

P.F. Rating

>.65

.93@230V
.98@115V

.7

.7

.95@230V
.98@115V

Max Output Amps

7

14

25

40

80

Output Banks

2

3

3

3

3

Battery Capacity (Amp-Hours)

14-70

28-140

50-250

80-400

160-800

Operating Temp.
Rating Reference

T-1

T-2

T-4

T-5

T-7

Case Size Ref.

A-1

A-2

A-2

A-3

A-5

Weight; Lbs./Kg.

3.2/1.5

8/4

8.2/4

12/6

15.2/7

Optional Temp.Sensor Model

N/A

TCS-12/24

TCS-12/24

TCS-12/24

TCS-12/24

Remote Panel Model

N/A

RP

RP

RP

RP

Equalize Option

No

Yes

Yes

Yes

Yes

Output Indicator Ref.

M-1

M-3

M-3

M-3

M-3

Compliance Ref.

CG, CE

CG, CE

CG

CG, CE

CE

   24 Volt Models

PT-24-8W

PT-24-13W

PT-24-20U

PT-24-45U

PT-24-60W

PT-24-95U

Input VAC (50-60 Hz.)

85-264

90-132 or
180-264

85-135 or
170-270

90-264

207-253

90-264

Input Amps @ Full Load



@ 115 VAC

2.8

6.5

8.5

12

NA

26

@ 230 VAC

1.4

4

4.3

7

13

14

P.F. Rating

.93@230V
.98@115V

.7

.7

.95@230V
.98@115V

.7

.95@230V
.98@115V

Max Output Amps

8

13

20

45

60

95

Output Banks

3

3

3

3

3

3

Battery Capacity (Amp-Hours)

16-80

26-130

40-200

90-450

120-600

180-950

Operating Temp.
Rating Reference

T-2

T-3

T-5

T-8

T-6

T-8

Case Size Ref.

A-2

A-2

A-3

A-5

A-6

A-6

Weight; Lbs./Kg.

8/4

8.2/4

12/6

12.2/6

24.1/11

24.5/11

Optional Temp.Sensor Model

TCS-12/24

TCS-12/24

TCS-12/24

TCS-12/24

TP

TCS-12/24

Remote Panel Model

RP

RP

RP

RP

N/A

RP

Equalize Option

Yes

Yes

Yes

Yes

No

Yes

Output Indicator Ref.

M-3

M-3

M-3

M-3

M-2

M-3

Compliance Ref.

CG, CE

CG

CG, CE

EN, CE

EN, CE

EN, CE

  32 Volt Model

PT-32-25W

Input VAC (50-60 Hz.)

104-126

Input Amps @ Full Load



@ 115 VAC

15

@ 230 VAC

N/A

P.F. Rating

.7

Max Output Amps

25

Output Banks

3

Battery Capacity (Amp-Hours)

50-250

Operating Temp.
Rating Reference

T-6

Case Size Ref.

A-4

Weight; Lbs./Kg.

12.2/6

Optional Temp.Sensor Model

TP

Remote Panel Model

N/A

Equalize Option

No

Output Indicator Ref.

M-2

Compliance Ref.

EN, CE

Case Size


Inches

Centimeters

Ref

H

W

D

H

W

D

A-1

10.5

5.0

2.8

26.7

12.7

7.1

A-2

12.5

7.7

4.3

31.8

19.6

10.9

A-3

13.85*

9.5

4.8*

35.2*

24.1

12.2*

A-4

13.8A

9.8

5A

35A

24.9

12.7A

A-5

14.8B

9.6

5.6B

37.6B

24.4
