Newmar PX-1 Junction Box Waterproof

Newmar PX-1 Junction Box Waterproof

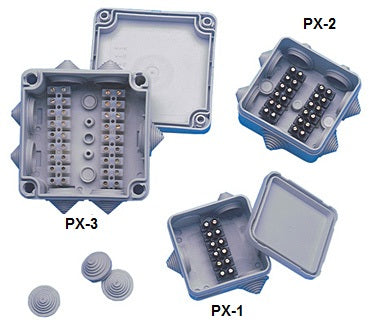

Waterproof Junction Boxes

• Ideal for making wiring connections above or below decks, even in areas subject to occasional spray
• Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene
• Snap-on cover provides watertight seal
• "Universal" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range
• Multiple position connector strips with "captive" screw compression wire terminals installed - meets ABYC standards
• Multiple knockouts provided for conduit access (in addition to cable entries)
• IEC Waterproof Rating: IP54 - "Water projected in jets against the enclosure from any direction shall have no harmful effects."

Specifications

Model PX-1 PX-2 PX-3 Number of Connector Strips 1 2 2 Positions per Strip 6 6 9 Max Wire Gauge 16 16 16 Number of Cable Entry Ports 5 7 7 Number of Cable Entries Installed 3 7 7 Spare Cable Entries Provided 2 0 0 Cable Diameter Range (inches) .14-.81 .14-.81 .14-1.0 Cable Diameter Range (mm) 3.5-20.5 3.5-20.5 3.5-25.5 Box Size Inches 2.95 x 2.95 x 1.66 3.35" x 3.35 x 1.66 4.45 x 4.45 x 2.29 Box Size Centimeters 7.5 x 7.5 x 4.2 8.5 x 8.5 x 4.2 11.3 x 11.3 x 5.8
