Newmar

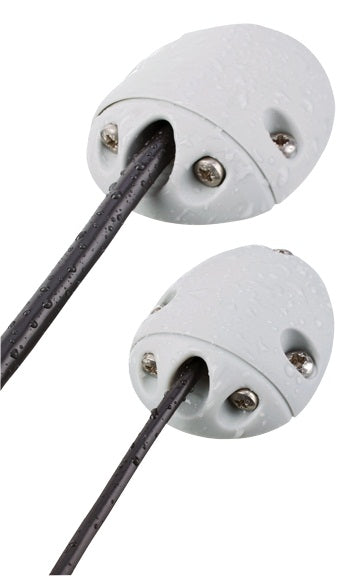

Newmar RA-1 Cable FEED-THRU 0.1-0.25 Inch Cable Diameter

Newmar RA-1 Cable FEED-THRU 0.1-0.25 Inch Cable Diameter

Regular price $48.95 USD
Regular price $51.00 USD Sale price $48.95 USD
Sale Sold out
Shipping calculated at checkout.

Newmar RA-1 Cable FEED-THRU 0.1-0.25 Inch Cable Diameter

RA Series Right Angle Waterproof Feed-Thru Fittings

Route cables at 90° through vertical and horizontal surfaces with wall
hugging low profile design that keeps cable secured close to the surface reducing intrusion with personnel or other equipment / cables.

Molded of nylon, the Sculpted shape has no sharp edges and provides
radiused 90° feed-thru bend in cables without damage.

Easy installation: slide silicone compression rings on cable, mount base piece with waterproof gasket then attach sealing end cap to create an IP 65 waterproof seal. Note cable must be routed without end connector attached.

Three models to accommodate wide range of cable diameters.

Model Cable Diameter Range (Inches) Dimensions (Inches) RA-1 0.1 - 0.25 2.17 x 1.65 x 0.63 RA-2 0.27 - 0.35 3.23 x 2.44 x 0.95 RA-3 0.39 - 0.47 3.23 x 2.44 x 0.95
