OceanLED Explore E6 XFM Colours DMX Underwater Light

OceanLED Explore E6 XFM Colours DMX Underwater Light

OceanLED Explore E6 XFM

• New generation innovative, efficient reflector optic.


• 20° side beam produces a blade of light under the water that penetrates further.


• A true 90° wide-angled, focused top beam lights up a large area of water, flooding it with light.


• Reduced installation time.


• Fish strobe mode.


• Control by switch or by DMX.


• Up to 11,000 Fixture Lumens*


• Rectangular Beam


• Compact design and built in driver.


• Simple toggle control.


• Ultra low profile outer bezel.

OceanLED Explore E6 is the ultimate choice, flush mount underwater LED light for those who want to be seen.

The mix of optic / electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.

All aspects of the design including the clamping kit make installation quicker and simpler.

The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.

The OceanLED Explore E6 has a variety of ways you can control the lights such as switching colours, selecting Strobe Mode or Dynamic Audio Mode.

Lumens (Colours DMX)
10,000

Fixture Lumens (Colours DMX)
6,000*

Min-Max Operating voltage DC
10-32V DC

Colours DMX Current / Amp draw (12V DC / 24V DC)
6.8A / 3.2A

Min-Max Operating voltage AC
100V - 240V AC

Colours DMX Current / Amp draw (110V AC / 230V AC)
830mA / 400mA

Driver type
Internal

Boat size
20m +

Transom / Hull spacing
0.5 - 1.2m (2-4’)

Installation depth below waterline
25 - 30cm (10-12")

Total weight
1.25kg (2.76lbs)

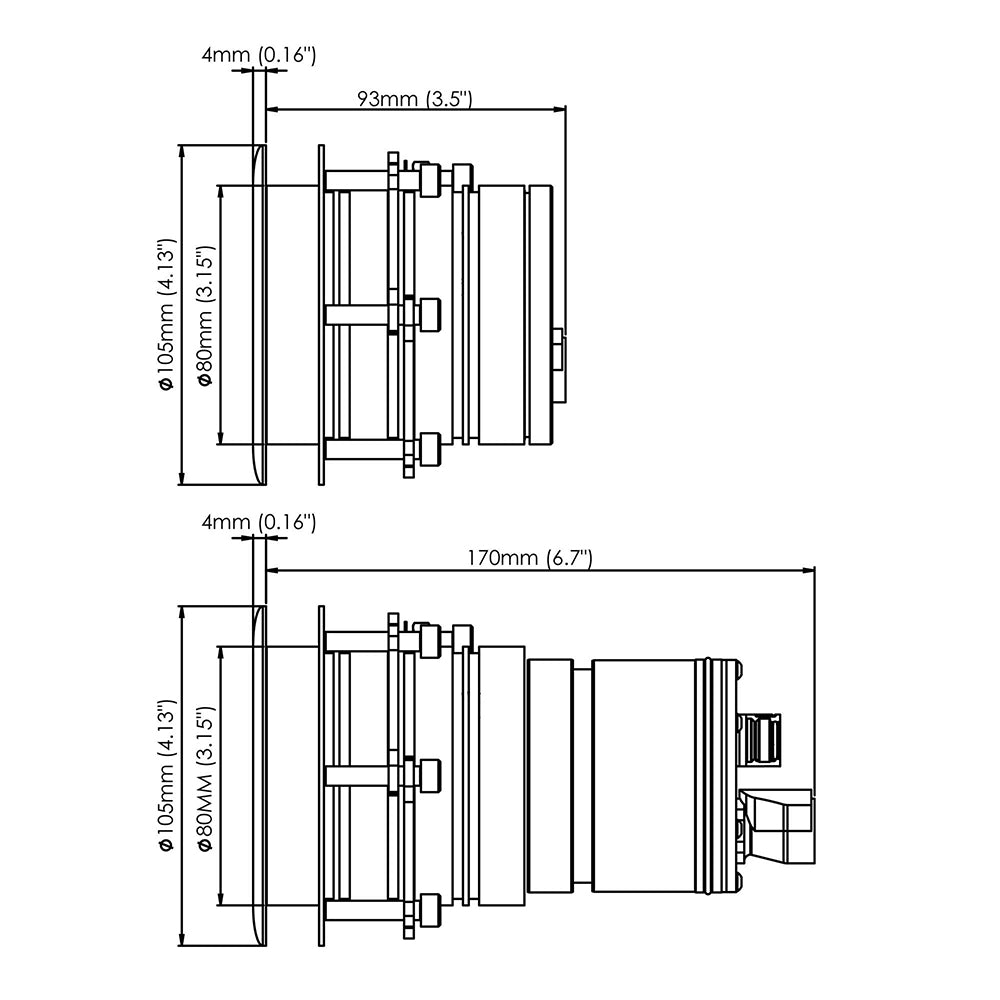

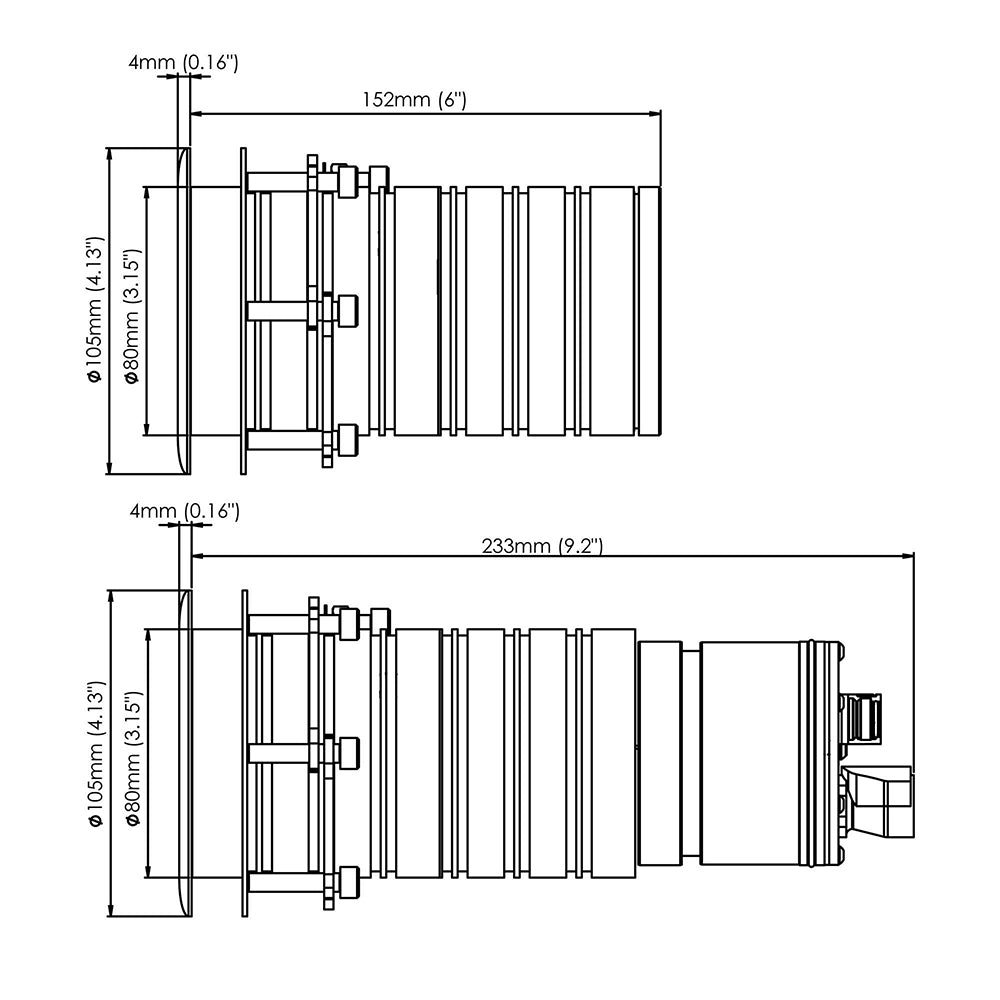

Total Diameter (Including Flange)
105mm (4.13")

Diameter Of Body
80mm (3.15")

Profile Of Fixture
4mm (0.16")

Length
97mm (3..8")

Minimum Space Required Inside The Hull
170mm (6.55")

Hole Cut-Out
83mm (3.25")

Material (Mounting Tube)
AB2 Aluminium Bronze

Material (Light Body)
Aluminium
