OceanLED Sport S3166S RGBW LED Underwater Light

OceanLED Sport S3166S RGBW LED Underwater Light

OceanLED S3166S RGBW Sport Series Underwater Light

• 8,448 Lumens/ 3500 Ficture Lumens


• Full RGBW Multi-color


• 90°/20° Beam Angle


• Comact and simple design


• Simple to install


• Fish-strobe Mode


• Active thermal control

With up to 3,500 fixture lumens, it’s the brightest in its class and allows you to choose any colour you wish.

Advanced optics, designed exclusively by OceanLED, offer a truly striking 90° surface beam angle with a focused 20° side beam angle providing greater water penetration and a significantly larger area illuminated without any loss.

Lumens
8448

Fixture lumens
3500

Typical LED life expectancy
40,000+ hours

Minimum-Maximum operating voltage DC
9-32vDC

Current / Amp draw (DC) (Amperage draw for Colours models vary by colour selected, this is the maximum)
12V DC 5.5A, 24V DC 2.4A

Driver type
Internal, Reverse Polarity Protected

Extension cable length (standard)
9.84’ (3m)

Hole cut-out for cable entry
0.5" (12.5mm)

Material
AB2 Aluminium Bronze

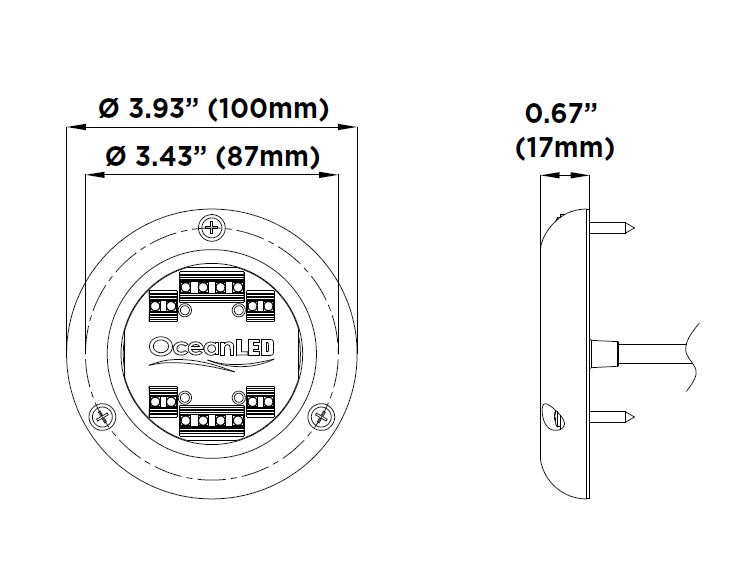

Dimensions
3.93" Dia, .67" Deep

What's in the Box:

• Sport Series LED Light and Cable


• In-line Fuse Kit


• Mounting Screws


• Quick Install Guide
