Pacer DT Deutsch Receptacle Repair Kit - 14-18 AWG (2 Position)

DT Deutsch Receptacle Repair Kit - 14-18 AWG (2 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wire. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector


• One to two extra terminals


• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications


• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K


• EU RoHS/ELV


• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention


• Redundant Silicone Seals


• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 2


• Housing: Rectangular receptacle, plastic reinforced with glass fiber


• Contact Size: 16 (13 amp)


• Wire Size: 14 AWG


• Holds Pin/Socket: Pins


• Operating Temperature: -55°C to 125°C

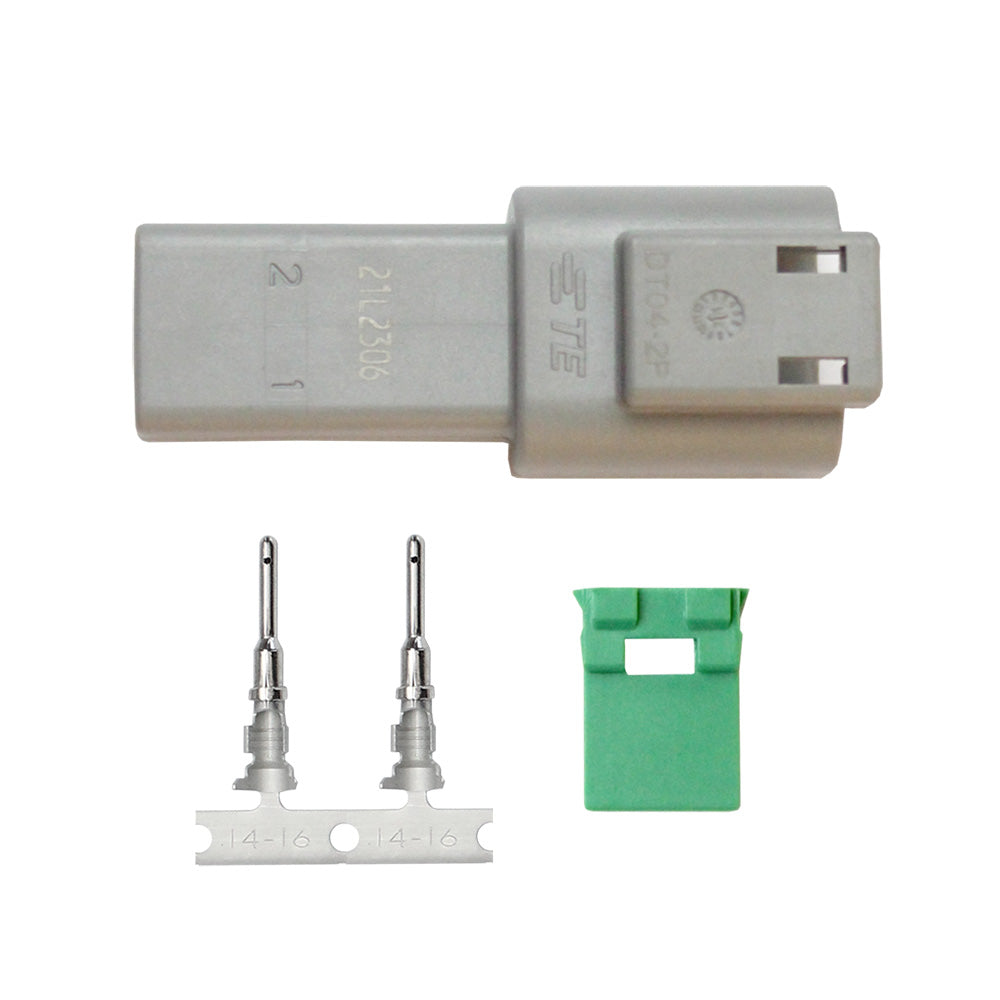

Contents:

• (1) 2 pos. receptacle


• (1) 2 pos. wedge lock


• (3) pins
