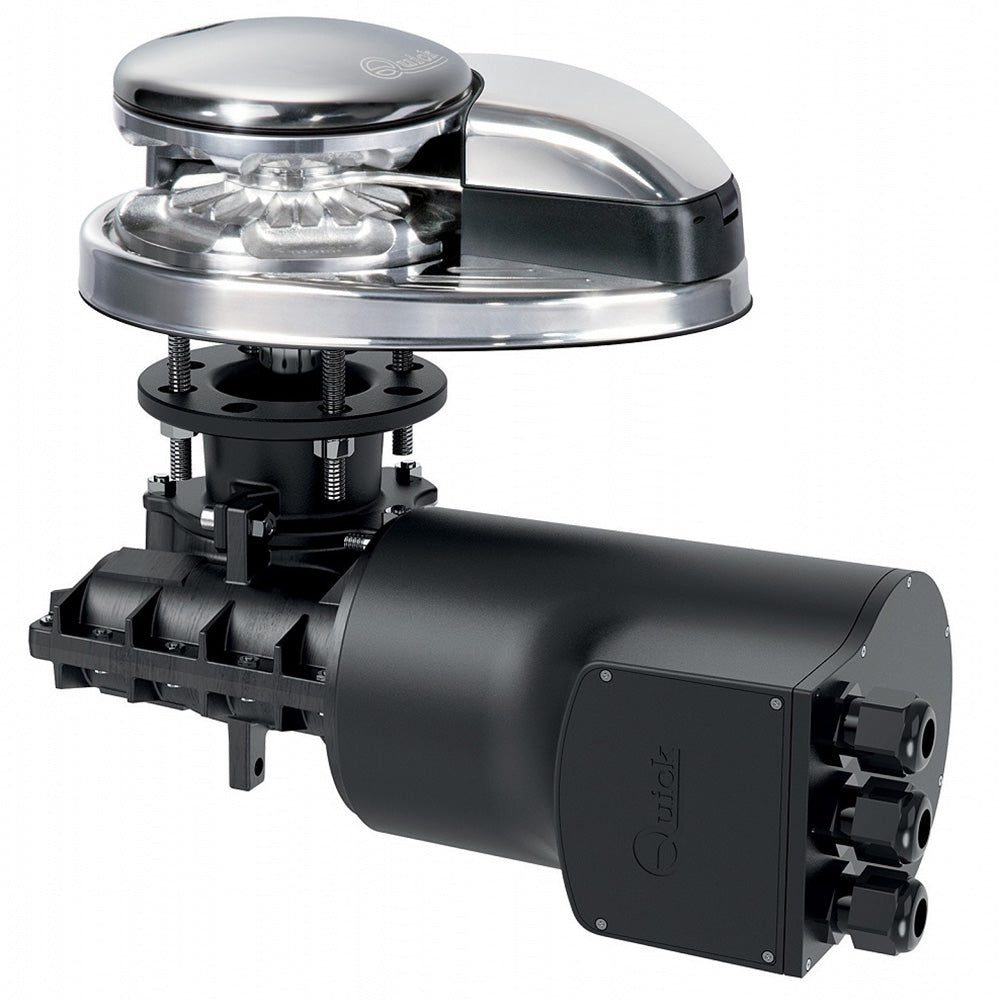

Quick Prince DP3 1012 Windlass - 1000W - 12V - 10mm (3/8") Gypsy

Prince DP3 1012 Windlass - 1000W - 12V - 10mm (3/8") Gypsy

This Quick Prince windlass is a vertical-axis windlass.

Application:

• For boats 10-14 m (33-46 ft.)

Features:

• No drum


• Vertical windlasses


• Stainless steel Aisi 316 base and anodized aluminum in hard oxide


• Rope and chain on a single gypsy


• Integrated sensor and a magnet for chain counter


• Manual Free-Fall system


• Supplied with pressure lever


• Inspection lid


• Motor watertight to IP67


• Technopolymer Gearbox (1000W)

Specifications:

• Rope: 5/8 in. (15,8 mm)


• Motor Power: 1000 W


• Motor Supply Voltage: 12 V


• Maximum Pull: 1000 Kg / 2204 lb


• Maximum working load    370 Kg / 816 lb


• Working Load: 120 Kg / 264 lb


• Current Absorption @ Working Load: 140 A


• Maximum Chain Speed: 39,6 m/min / 129.2 ft/min


• Maximum Chain Speed @ Working Load: 20,4 m/min / 66.9 ft/min


• Weight - DP3 - [without drum]: 17,4 Kg / 38 lb
