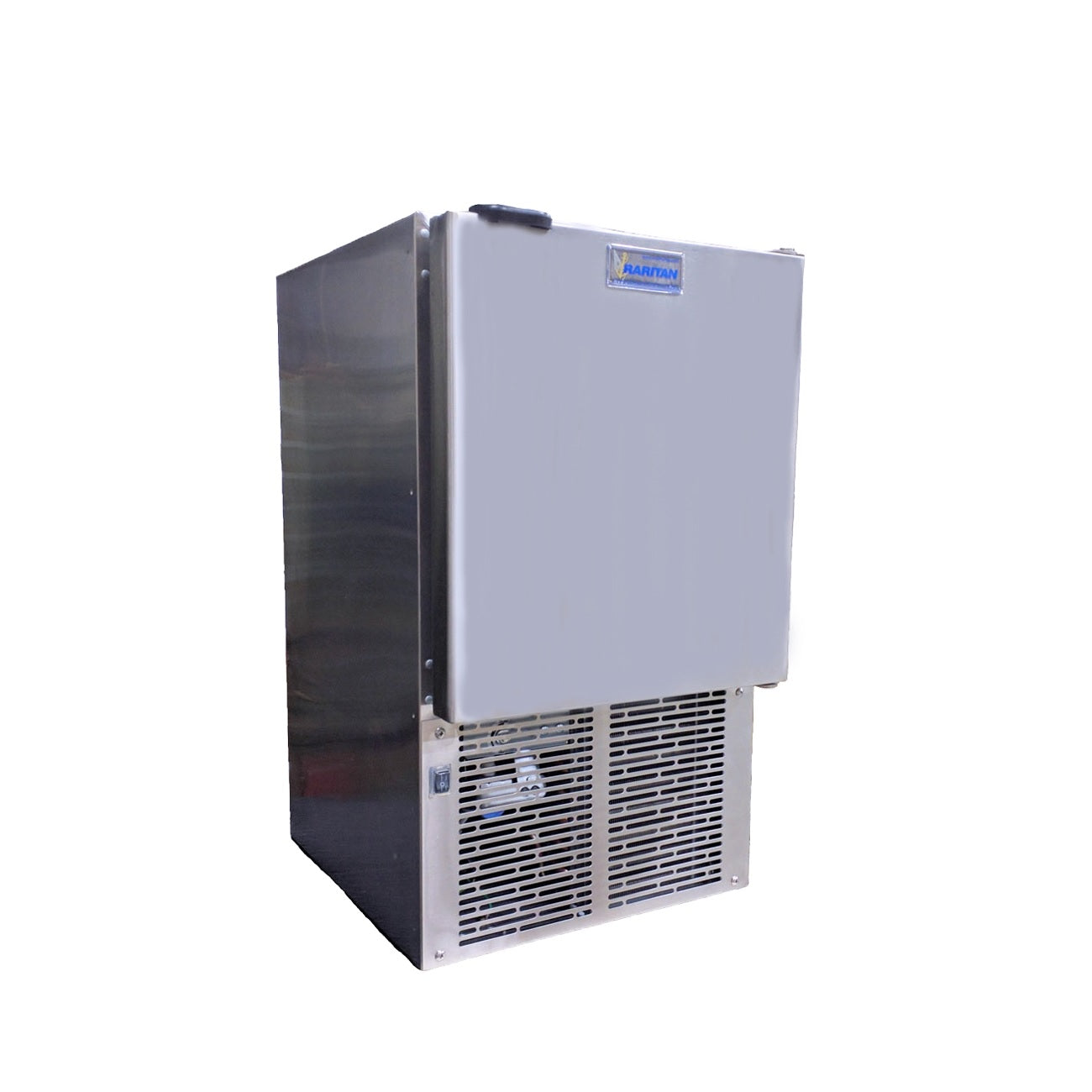

Raritan 88B515-1 Ice Maker Built-In Flange 120V

Raritan 88B515-1 Ice Maker Built-In Flange 120V

Raritan 88 Series Iceamaker Built-in Flange, Free Standing 120V

• Improved controls for more efficient operation.


• Cabinet and door built to last in harsh marine environments.


• Removable ice bucket stores up to 11 lbs of crescent ice (1/2" W x 3/4" H x 2-1/2" L)


• No drain required makes it easy and inexpensive to install.


• Only requires a 1/4" outside diameter water line.


• Does not require additional hinge clearance for door swing.


• Includes flange.


• No additional side space required for ventilation.


• Water Pressure Operating Range 20-120


• All ventilation from front, limited vent in back of unit. No additional clearance required around the sides.


• Adjustable rubber leveling feet


• Water supply Inlet size 1/4" OD and requires 3/4 space behind the unit for clearance


• Water supply inlet located in lower right of rear opposite of the power cord

Electrical requirements
115V/60Hz with USA plug

Volatage range
104V~127V

Maximum amp fuse
15amps

Dimensions

Body
24 1/2" H x 14 W x 17 1/16" D

Flange
25 7/16" H x 15 1/2" W
