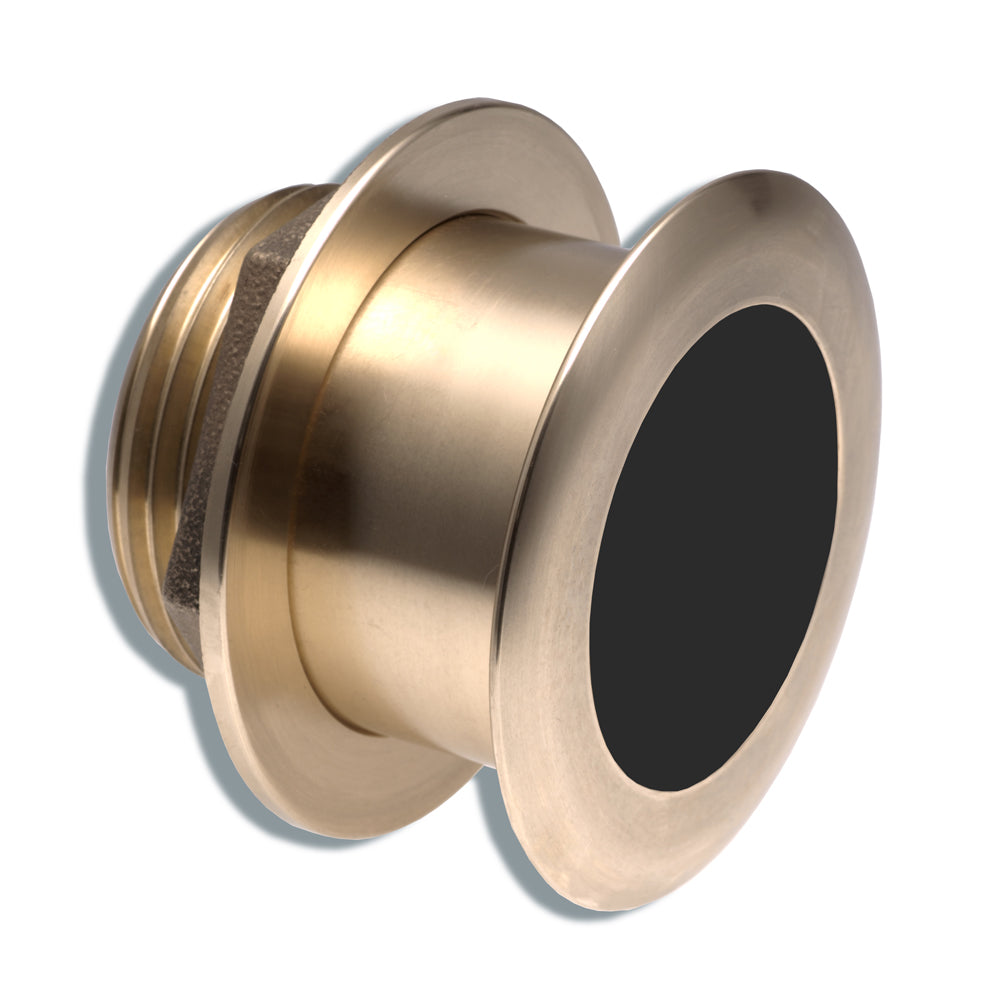

Raymarine B175L Bronze Low Profile Thru Hull 20 degree Tilted Element Transducer - 1kW

B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW

Features

• Material: Bronze




• For use with CP450C or CP470 Chirp Sonar Module




• Power (RMS): 1Kw




• Max Depth(ft): 2,500




• Frequency (khZ): 40-60




• Beam Width(L/H): 32°-21°




• Records: Depth / Temperature




• Approved Hull Material: Fiberglass / Wood




• Cable Length (Ft/M): 33ft / 10M




• Supported Deadrise / Transom Angles: 16-24° Deadrise




• Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable
