Shadow-Caster 6-Channel Digital Switch Module Shadow-NET* Control f/Single Color & 3rd Party Lighting

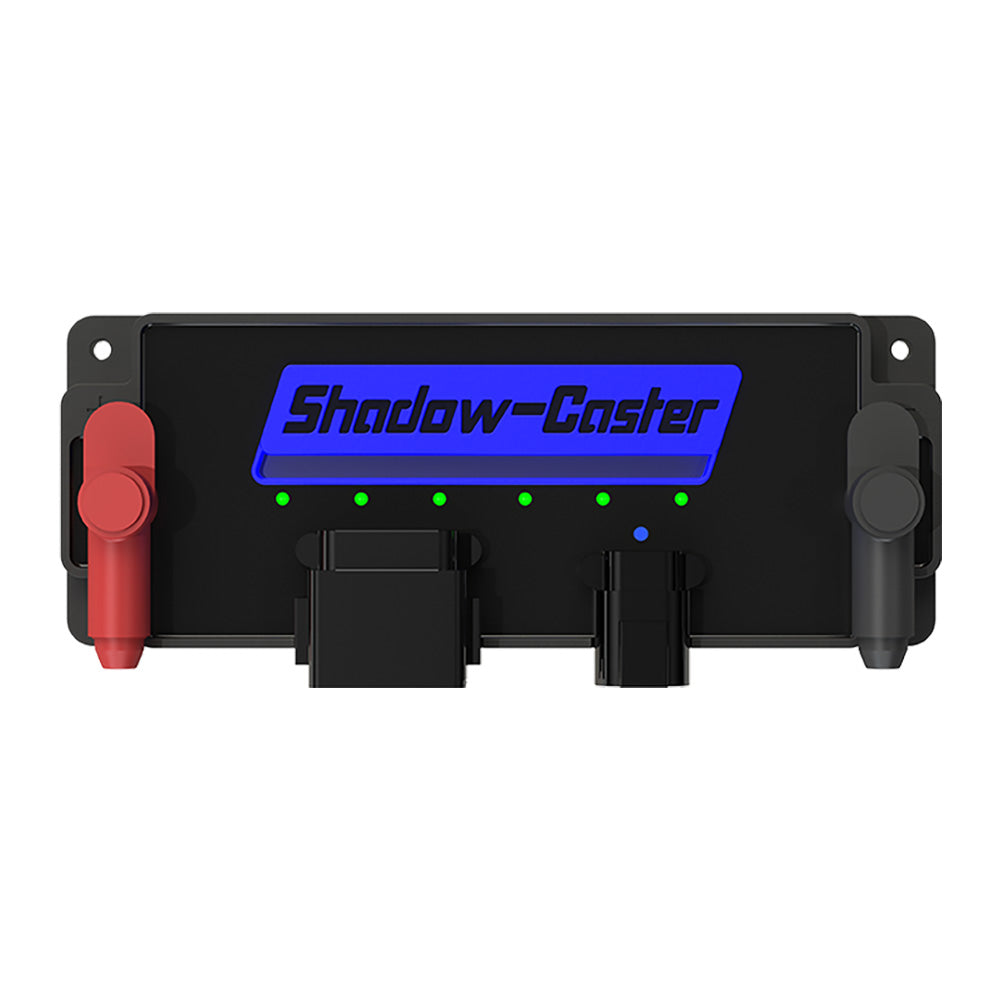

6-Channel Digital Switch Module Shadow-NET™ Control for Single Color & 3rd Party Lighting

The 6-channel digital switch module offers a convenient way to integrate any standard light with the Shadow-Caster™ MFD interface. Simply plug in the module to the Shadow-NET™ system and switch support will automatically populate on the screen.

Each module provides 6 channels of support, that will handle up to 10 amps per channel with digital fault protection. There is also a manual switch input for overriding the interface.

Features:

• 6 independent digital switches


• Control other brands of lights with the Shadow-Caster™ MFD interface and phone app


• Digital over current fault protection


• Manual switch override


• Green/red LEDs provide the status of each channel


• Full integration with Shadow-NET™ interface


• The blue backlight indicates the power state

Specifications:

• 12/24V operation


• 10A each channel


• 5/16” power lugs


• IP67 Deutsch connections


• Power lug protection boots

What's Included?

• 6 channel digital power switch


• Mounting hardware 4 #8 PH x.5”


• Pre-wired mating connectors


• 3 year standard warranty
