Simrad AP70 MK2 Control Auto Pilot Control Head

Simrad AP70 MK2 Control Auto Pilot Control Head

Simrad AP70 MK2 Control

Model: 000-14958-001

• Wheelmarked for use on board SOLAS vessels (IMO, MED-B)


• Advanced configuration and tuning options to suit all ships


• Compatible with all common rudder/drive types


• Up to 6 rudders/thrusters integration


• Heavy-duty rudder feedback support


• Configurable work modes and low/high speed modes


• No Drift steering holds course against wind and tide


• Navigation steering, route following


• Command transfer and multiple control stations support

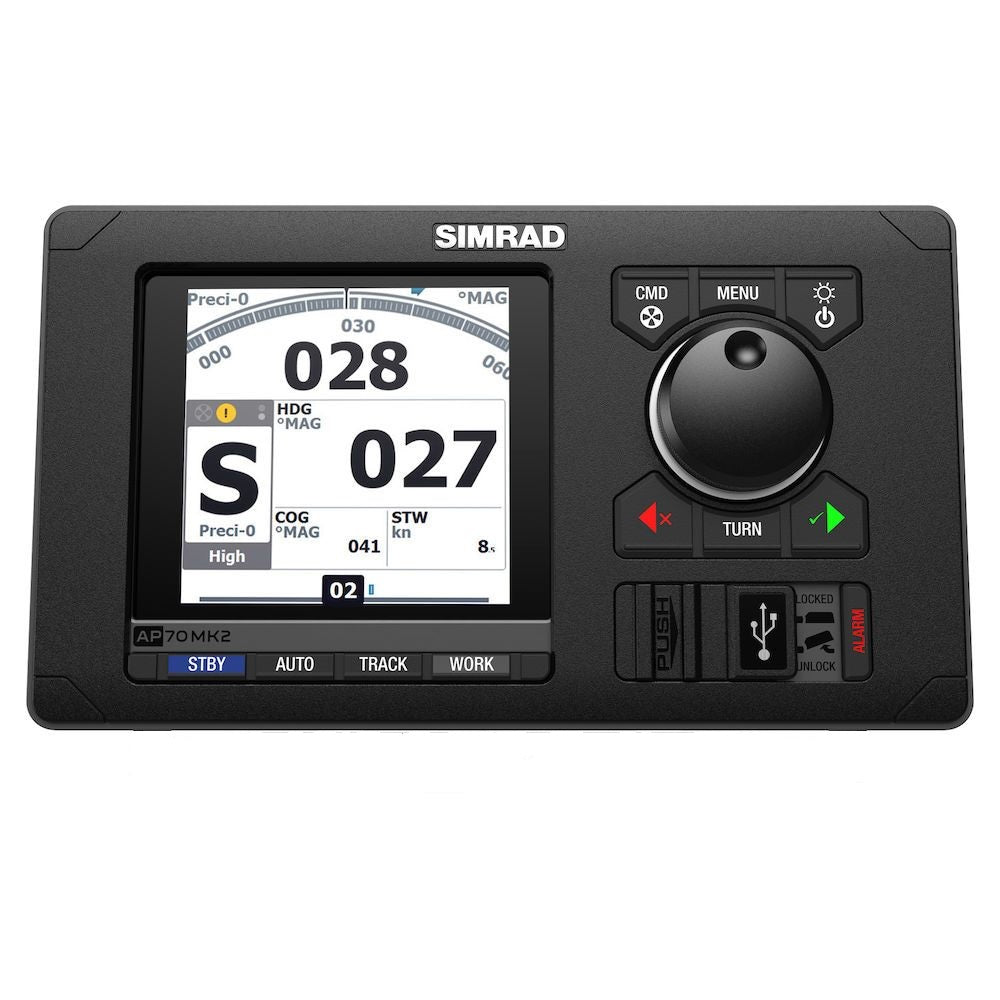

The AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.

Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface.

Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.

Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.

The AP70 Mk2 builds on, and continues the legacy of the SIMRAD Pro autopilot product portfolio. Its performance, robustness and quality are proven and recognised with the wheelmark symbol, making it suitable for all vessels ranging from small work- boats to large tankers.

Parameters ranges and tuning options to support vessel dynamics. Adjustable for all weather conditions, hull types, work situations. Suitable for retro-fit on old ships as well as modern new-builds.

Water jet, Azi-pods, Voith-Schneider, Rudder, outboard. Control signals to control, hydraulic pumps, solenoids, analog current/voltage, control/handshake signals.

Dual rudders, fore and aft thrusters supports large and complex installations and redundancy.

Simrad heavy-duty rudder feedbacks are supported.

Autopilot settings can be tuned for optimal performance in separate low-speed, high-speed, and Work modes. The user-configurable Work mode allows the autopilot system to be configured for optimal response in a specific situation, such as a fully laden vessel, configurable thruster usage.

Navigation steering controls the ship on a pre-planned route from a Simrad MFD, Simrad ECDIS or third party MFD and ECDIS.

Command transfer is a mechanism useful in multi-controller installations. It enables the officer on watch to allow, deny the transfer of autopilot control to control devices such as a secondary AP70 Mk2 or a remote controller on a bridge wing station, above deck, or aft bridge depending on the work scenario. The AP70 Mk2 can also be used in an open configuration, where control flow is unrestricted.

Specifications

PC Connectivity
1 x Ethernet port

Compass Safe
0,4m (15,75")

Power Consumption typical
0,7/0,4 A at 12V DC, 0,4/0,3 A at 24 V DC backlight full/off

Power Consumption max
0.7A at 12V, 0.4A at 24V

Weight
1,4 kg (3,1 lbs)

Supply Voltage
12/24VDC +30 -10%

Viewing Angles
170° viewing angle

NMEA 2000 Connectivity
1x CAN Micro-C port, 1 LEN

Warranty Period
2 years

Dimensions W x H x D
253 x 144 x 54mm (9,92 x 5,67 x 2,13 ")

Storage Temperature Range
-25C to +70C (-13F to +158F)

Recommended Fuse Rating
2A

Operating Temperature Range
-30C to +55C (-22F to +131F)

Display Resolution
480 x 480

Waterproofrating
Exposed IPx6

Mounting Type
Flush, bracket

Type Approval
HCS, HSC, Wheelmark, US Coastguard, CCS, and RMRS approved depending on autopilot computer

Interface
Keypad and rotary dial

Approvals Compliance
MED-B-7837-DNV, MED-B-7918-DNV, MED-D-Navigation Equipment

Compasssensor support
NMEA2000, NMEA0183

Steering Modes
Non Follow Up (NFU), Follow Up (FU), Auto, NoDrift, Nav

Engine Drive systems integration
Reversible pump, Solenoid valve on/off, Proportional valve, Analog, CAN (SG05Pro)

Rudder sensor s upport
RF300, RF45X, RF25N, RF70, RF14XU

N2K PGNs
See SI80 Signal Interface

Manouevres Turn Patterns
U-turn, S-turn

Backlight Color
White/Red

What's in the Box:

• Simrad AP70 MK2 Control


• N2K-T-RD Network T-Connector


• N2KEXT-15RD 15ft Network Extension Cable


• Power Cable, 4-Pin
