Simrad B60 12 Deg 50/200KHZ Black 9-Pin Thru Hull with 10m Cable

Simrad B60 12 Deg 50/200KHZ Black 9-Pin Thru Hull with 10m Cable

Simrad B60 Xsonic 50/200kHz Bronze Thru-hull 12 Degree Tilted Element

• Depth and water temperature


• 600 W


• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')


• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')


• Perfect for center-console or trailered boats


• Low-profile protrusion extends only 5 mm (3/16") outside the hull


• No effect on your boat’s running performance


• Bronze housing

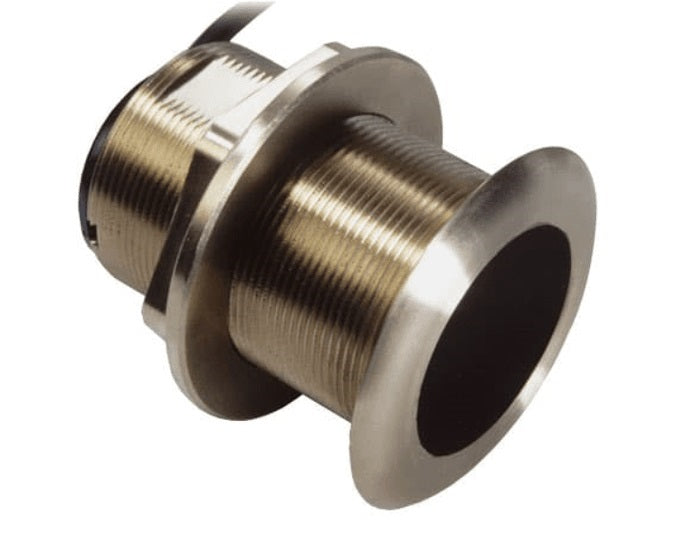

The B60 is a Bronze, thru-hull, dual-frequency, depth and temperature transducer. The ceramic element gives excellent echo returns for more accurate depth readings.

Weight
1.4 kg (3 lb.)

Recommended Boat Length
Up to 8 m (25')

Hull Material
Fiberglass or wood

Hull Deadrise
8°-15°

Acoustic Window
Urethane

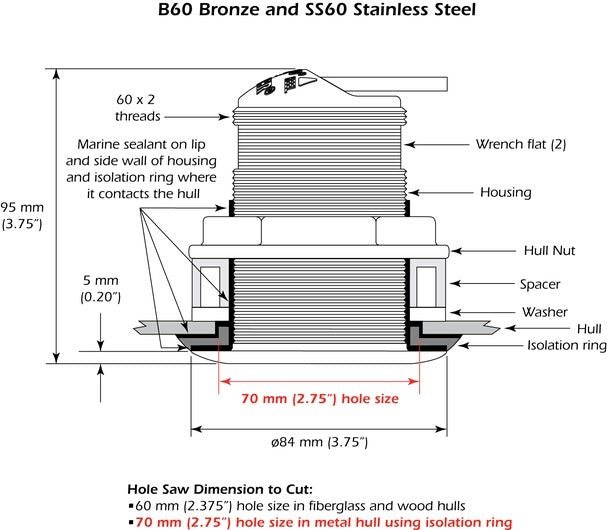

Hole Diameter
60 mm (2-3/8") (fiberglass or wood hull)
