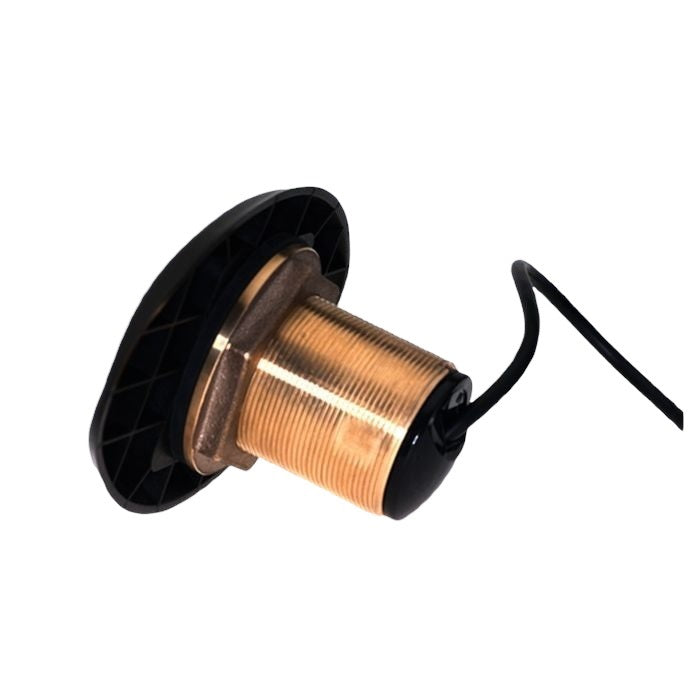

Simrad Bronze HDI Thru Hull 50/200/455/800 Khz 9-PIN 0D

Simrad Bronze HDI Thru Hull 50/200/455/800 Khz 9-PIN 0D

Simrad Bronze HDI XDCR 0deg Tilt 50/200 455/800

• Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature

The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.

Frequencies
50,200,455 and 800 kHz

Beam width @ -3db
50kHz 45° 200kHz 11° 455kHz Fore to aft 2.8°, Port to starboard 56°
800kHz Fore to aft 1.6°, Port to starboard 32°

Cable length
10 meter
