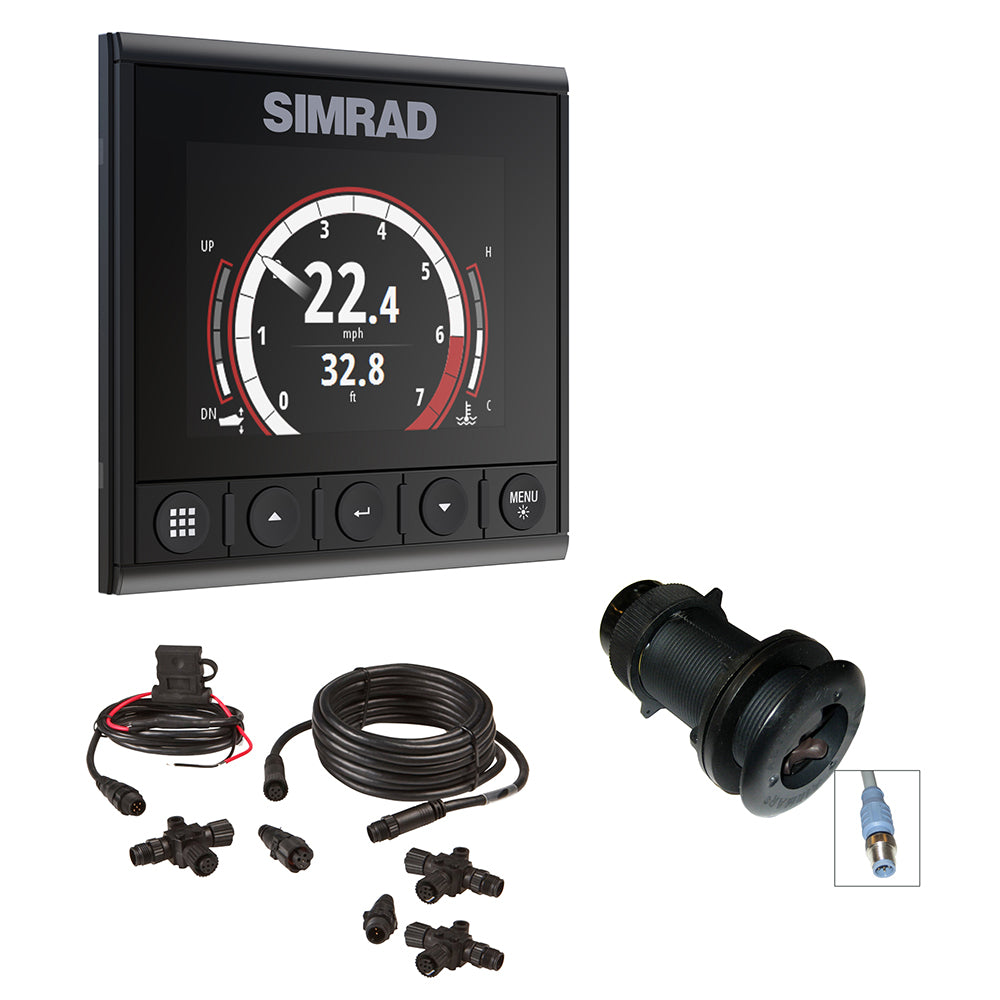

Simrad IS42 Speed/Depth Pack - IS42 Digital Display, DST800 Ducer & N2k Backbone Starter Kit

IS42 Speed/Depth Pack - IS42 Digital Display, DST800 Ducer & N2k Backbone Starter Kit

The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.

Features:

• Optically bonded 4.1" color display




• Multi-purpose digital instrument




• Display wind, speed, depth, engine data, autopilot status and more




• Intuitive operation




• Easy installation




• Add an OP12 keypad for full Simrad autopilot control




• Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers




• Low-profile glass helm design




• Low power consumption




• Certified NMEA 2000® connectivity

• Dimensions: 118 x 115 x 28mm (4.6" x 4.5" x 1.1")




• Weight: 0.32kg (0.7lbs)




• Power Consumption: 1.8 Watts (MAX)




• Network Load: 3 LEN




• Color: Black




• Display Size: 4.1" (diagonal). 4:3 Aspect ratio




• Display Type: Transmissive TFT-LCD, bonded. White LED backlight




• Dsiplay Resolution: 320 x 240 pixels




• Illumination: White for day mode. Red, green, blue or white for night mode




• Environmental Protection, Waterproof: IPx7




• Environmental Protection, Humidity: up to 95% RH




• Compass Safe Distance: 300mm (1.0")




• Temperature Operating: -15 to +55°C (5°F to +131°F)




• Temperature Storage: -30 to +70 °C (-22 to +158° F)
