Simrad NAC-3 VRF Core Pack Virtual Rudder Feedback

Simrad NAC-3 VRF Core Pack Virtual Rudder Feedback

Simrad NAC-3 VRF High-current Core Pack

NAC-3 VRF Core Pack: Comprising of the high-current NAC-3 autopilot computer and Precision-9 compass.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Operating temperature
0 to +55°C

protection
IPX7
Electrical
Power supply
12/24vDC

Reversible motor control of rudder
Max continious load 30A, peak 50A for 1s

On/off solenoid control of rudder
12/24V DC, common, load range 10mA to 10A, off current <1mA

Engage output for bypass/clutch
12/24V DC, min 10mA, max 3A

NFU port/stbd input and mode indicator output
External open/close contact, common ret, contact current max 30mA

Mode input
External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA

External alarm output for buzzer/relay
Max 100mA, voltage level as local supply
Networking
NMEA 0183
1 in 1 out

NMEA 2000
1 Micro C

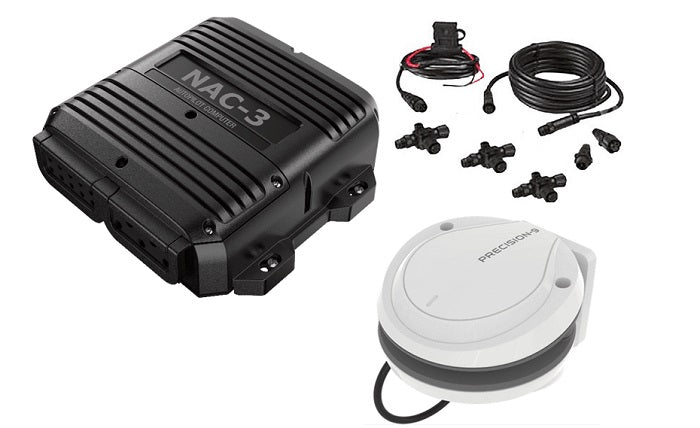

What's in the Box:

• NAC-3 Autopilot Computer
• PRECISION-9 COMPASS
• N2k Backbone Starter Kit
