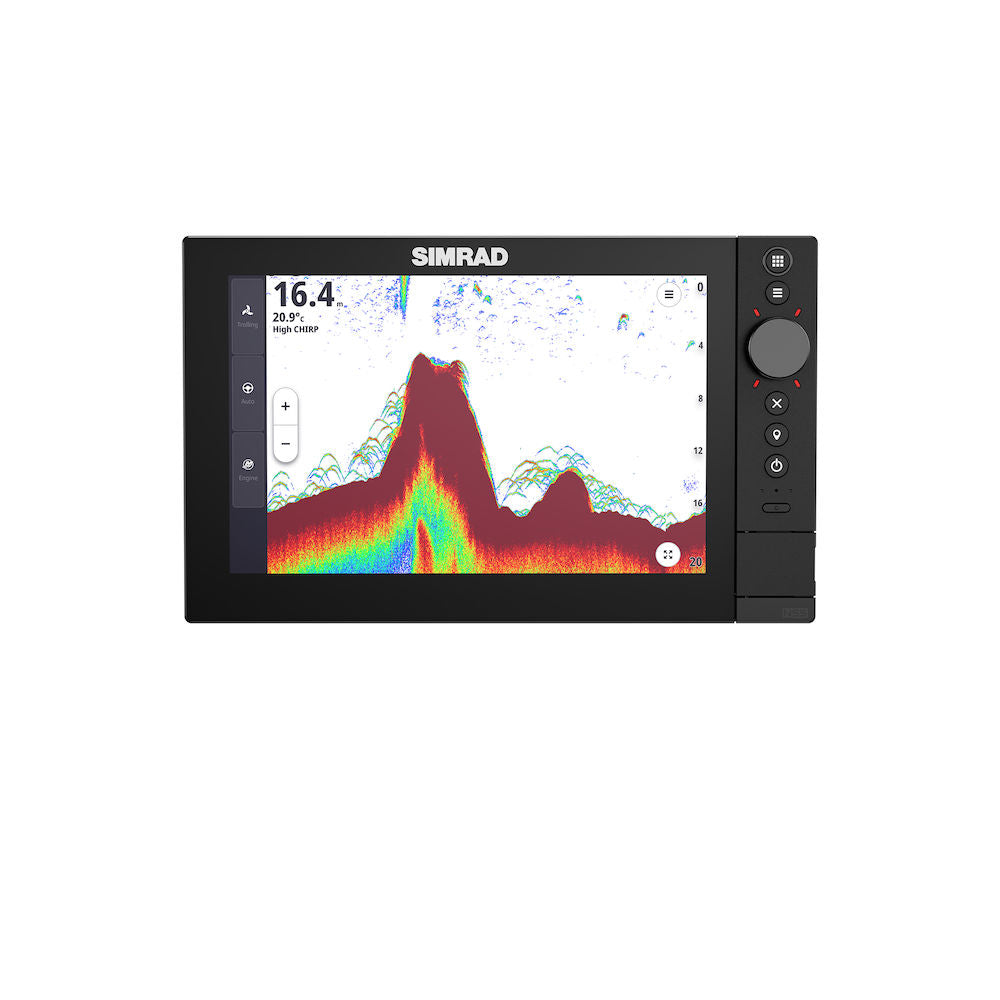

Simrad NSS4-10 10in MFD With Sonar US C-MAP Discover X

Simrad NSS4-10 10in MFD With Sonar US C-MAP Discover X

Model: 000-16012-001

• Trio of hybrid controls: touch, rotary, and keypad


• Premium glass-to-edge design


• Lightning fast Qualcomm® 8-core processor


• Redesigned operating system


• Built-in dual channel 1kW CHIRP echosounder


• Support for Active Imaging & Active Imaging HD


• Support for C-MAP® X-gen charts and others


• Simrad® RECON, Rhodan® and Motorguide® Trolling Motor Compatible


• Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more


• Support for Mercury®, CZone®, SiriusXM®, and more...

NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. And the keypad brings a selection of one-touch functions for easy navigation.

Experience the power of a lightning fast Qualcomm® 8-core processor, designed to keep up with every move on the water.

Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing — and not on the screen.

NSS 4 delivers our fastest ever auto-routing and rapid chart rendering, helping you hit your next spot quickly. NSS 4 delivers our fastest ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.

Active Imaging HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structure in stunning detail — making it easier to pinpoint the best angling spots.

Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON trolling motor, the incredible Simrad® app, and more

Make NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen set up.

Specifications

Autopilot

Manouevres / Turn Patterns
U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth

Steering Modes
Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Cartography

Chart Format
C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X

Charts Supported
C-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StikeLines (check with provider for available content)

Connectivity

Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic (currently not used)

Ethernet
1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)

NMEA 0183
No

NMEA 2000
1 x NMEA 2000 Micro-C port, 1 LEN

PC Connectivity
No

Video
Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera

WiFi
Wi-Fi 5 (IEEE 802.11ax)

Display

Backlight Color
White

Resolution
1280 x 800

Screen Brightness
>1200 nits

Size and Type
10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses

Viewing Angles
80° top/bottom, 80° left/right

Electrical

Power Consumption, max.
28 W

Recommended Fuse Rating
5 A

Supply Voltage
12/24 V DC (10 - 31.2 V DC min - max)

Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Environment

Operating Temperature Range
-15°C to 55°C (5°F to 131°F)

Shock and Vibration
100,000 cycles of 20 G

Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)

Waterproof rating
IPX6 and IPX7

GPS

Correction
10 Hz high speed update (internal)

GPS Receiver Channels
32 Channels

Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)

Update rate
10Hz

MFD

AIS
Receive AIS data over NMEA 2000

Autopilot
NAC-1, NAC-2, NAC3, NAC-D compatible

Cartography included
Discover X chart card of North America

Cartography supported
C-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StikeLines (check with provider for available content)

Digital Switching
Czone / DDS

External Storage
2x (microSD®, SDHC®)

GPS
10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)

Weather
Sirius XM via WM4 module (USA only)

Waypoints, Routes, Tracks
10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network

Compass Safe Distance - Metric, imperial
35 cm (1.15 ft)

Physical

Dimensions (W x H x D)
Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33 in x 6.93 in x 3.13 in) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43 in x 7.73 in x 3.13 in )

Mounting Type
Bracket mount (bracket supplied). Rear mount (brackets supplied)

Weight
1.8 kg (3.97 lb)
