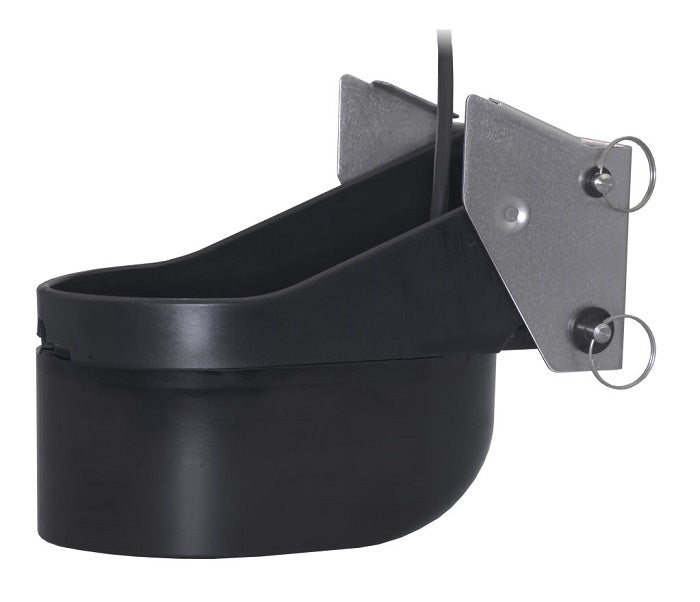

Simrad TM260 50/200KHZ Transom Mount 9-PIN

Simrad TM260 50/200KHZ Transom Mount 9-PIN

Simrad TM260 Plastic transom-mount. 50/200Khz with diplexer. 9-pin

Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Frequency
50/200kHz

Power rating
1 kW

Speed sensor
No

Temperature sensor
Yes

Mounting style
Transom mount

Elements
8

Beam width @ -3db
19 (50 kHz) 6 (200 kHz)

Cable length
10 meter

Connector
9-pin black
