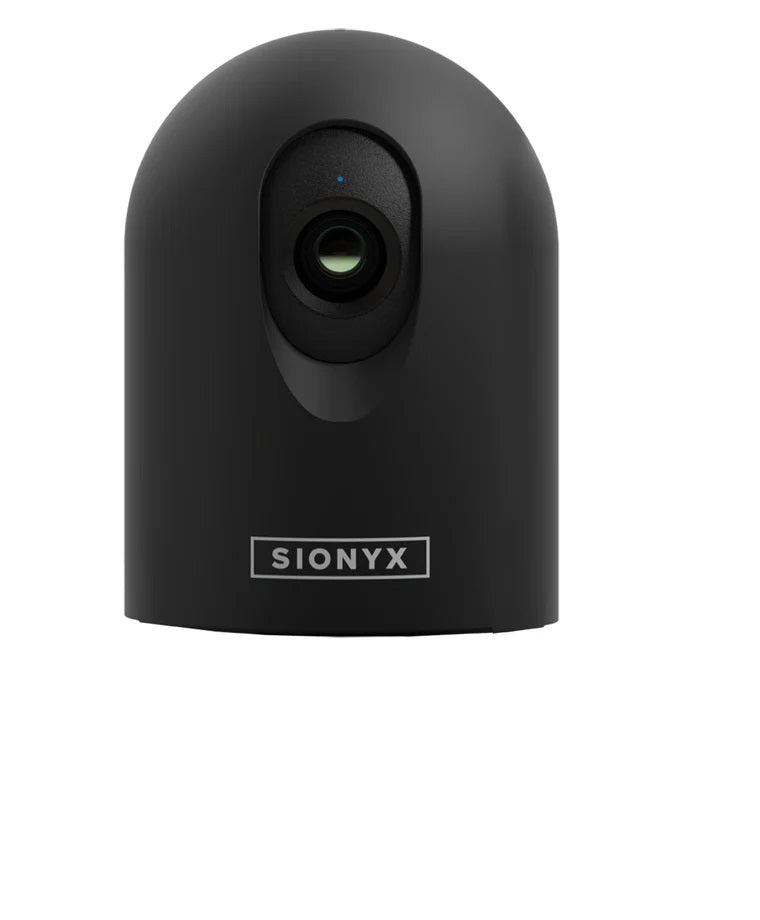

Sionyx Nightwave IP Digital Low-Light Fixed Mount Camera Black Housing

Sionyx Nightwave IP Digital Low-Light Fixed Mount Camera Black Housing

Sionyx Nightwave Digital High Resolution Low-Light Marine Camera - Black

• Seamless inegration with all major brand MFDs


• Network (POE) compatibility


• Engineered for large screens (higher resolution)


• Connectivity with app control via Wi-Fi


• One camera to multiple MFDs or multiple cameras to one MFD

Meet the next generation of ultra-low-light marine imaging. Nightwave Digital delivers unmatched clarity - even in moonless starlight—thanks to the enhanced IP (PoE) digital connectivity and advanced Black Silicon CMOS sensor, outshining traditional thermal cameras.

Nightwave Digital offers higher resolution, greater reliability, and seamless integration with networked MFD systems. With flexible mounting options and an intuitive setup, it’s built for captains who want safety without complexity. Less guesswork, more peace of mind.

Whether cruising, fishing, or docking after dark, Nightwave Digital helps you stay safe—and enjoy every moment on the water.

IMAGE SENSOR
COLOR XQE1350 BSI CMOS

RESOLUTION
1280 X 1024

FRAME RATE
UP TO 30HZ

MIN ILLUMINATION
MOONLESS STARLIGHT (<0.001 LUX)

FOCUS RANGE
FIXED 10M TO INFINITY

HORIZONTAL FIELD OF VIEW
44°

DAY & NIGHT
AUTO DAY/NIGHT FILTER

VISIBLE SPECTRUM
400-1200 NM

LENS
LENS 16MM F/1.4

PHYSICAL PROPERTIES

POWER POE
[37—57 VDC / TYP 48 VDC]

CONSUMPTION
5W NOMINAL

IMAGE SETTINGS
BRIGHTNESS, CONTRAST,SHARPNESS, SATURATION,DAY & NIGHT, HDR, ORIENTATION

MOBILE APP
IOS & ANDROID
WI-FI + BLUETOOTH
SOFTWARE UPDATES
IMAGE SETTINGS

IP VIDEO OUT
H264 MAIN PROFILE
MAIN: 1280 X 1024 / SUB : 640 X 512
30 FPS, 30 GOP

ENVIRONMENTAL

OPERATING TEMPERATURE
-20°C TO +50°C

STORAGE TEMPERATURE
-30°C TO +70°C

WATER INGRESS
IP67

SHOCK & VIBRATION
20G VERTICAL
10G HORIZONTAL
IEC 60945; MIL-STD-810E

WIND
100 MPH (161 KPH)

SOLAR UV EXPOSURE
MIL-STD-810G

What's in the Box:

• Nightwave Digital - Black


• Camera cable (10m)


• Network ethernet cable (2m)


• Power 2/16 cable (2m)


• RJ45 terminal x 2


• Cable zip tie
