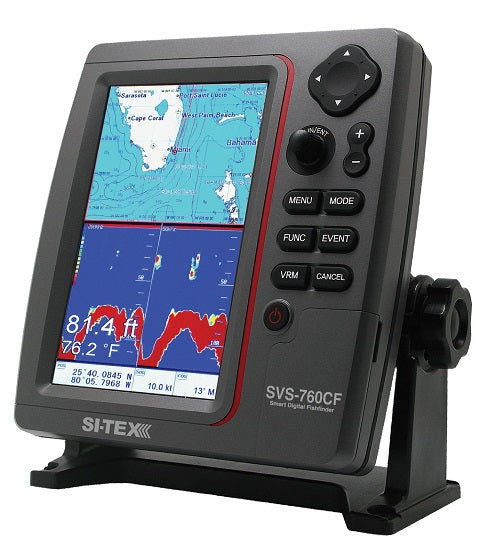

Sitex SVS-760CF 7" Color Comb

Sitex SVS-760CF 7" Color Comb

Si-tex SVS-760CF 7.5" Color FishFinder Chart Plotter

• 600W output/dual frequency operation
• Vertical 480X800 pixel display delivers optimum sounding data
• High-speed CPU presents all fish targets
• IPX7 Waterproof rating for flexible installation
• Professional features include Bottom Discrimination, Bottom Lock, Bottom Zoom, A-Scope
• Alarms for Depth, Fish School and Water Temperature
• Easy AIS integration for safe navigation and fishing
• SVS-760CF provides full chartplotting capabilities with both C-MAP and Navionics cartography

Display
7.5" Color TFT LED Backlight (480X800 pixels)

Operating frequency
Dual 50/200kHz

Output power
600 watts RMS

Operating Temperature
-15o C - +50o C

Display modes
Normal (single/dual frequency), Bottom-Lock, Bottom Zoom, A-Scope, Shift, VRM

Depth ranges
10’ — 4,800’

Image speed
8 Image speeds (4/1, 2/1, 1/1, ½, ¼, 1/8, 1/16, 1/32) and stop

Interference rejection
4 levels

Noise rejection
4 levels

Function
Gain (auto/manual), Range (auto/manual), depth with shift (auto/ manual) pulse length selection, white/black line, water temp., bottom enhancement, 26 languages, multiple background colors, Draft Offset

Alarms
Depth. Sea Temp. Fish

Waterproof rating
IPX7

GPS Receiver
Over 50 Channels

Position accuracy
2.5m/2.0m DGPS

Chart Data
C-MAP and Navionics on SD card

Waypoints/Marks/Routes
20, 000/50,000/100

Plotter alarms
rrival, Anchor, Off Course, Interval Timer, AIS (CPA/TCPA)

Input Voltage
12 - 36v DC

Input Draw
12 watts

Dimensions
8.2 x 8.4 x 2.5

What's in the Box:

• Display
• Bracket
• Knobs
• Power cord
• Manual
• Navionics Plus Card
