Sitex T2060A 10.4" Color Radar With 6Kw 6' Open Array

Sitex T2060A 10.4" Color Radar With 6Kw 6' Open Array

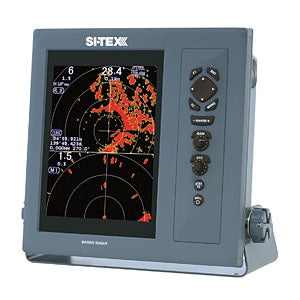

Si-Tex T2060A-6 10.4" Display 6kW Open Array Radar with 6.5' Antenna

• Dual-Speed antenna with 48-rpm capability for high speed/river operations


• Split-screen display of long- and short-range targets simultaneously


• True-Trail Function identifies moving targets


• Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing


• Standard AIS Interface module capable of tracking 200 targets*****


• Optional 50-target Automatic Tracking Aid (ATA).

Scanner
6.5' Open Array

Peak Power Output
6kW

Output Frequency
9410 +/- 30MHz

Beam Width
1.2° Horzontal, 22° Vertical

Rotation
24 or 48 RPM

Pulse width
.08, 0.15, 0.3, 0.5, 1 usec

IF Frequency
60MHz

Range Accuracy
Better than 8m or 1% of range scale selected, whichever is greaer

Minimum Detecting Distance
25m

Display Unit

Size/Type
10.4" TFT Color LCD

Resolution
480 x 640

Display modes
Heads up, North up*, Course Up*, WPT up**

Dimensions
12 19/32" x12 19/32" x 5 39/64"

Power
10.8 - 31.2vDC

Power Consumption
110 watts or less

*Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on application of user.
**Requires waypoint data input.

What's in the Box:

• MRD-104 Display


• RB717A - Pedestal 6kW


• RW701A-06 - 6.5' Antenna


• 242J159098A ?15M Cable


• DC Power Cable


• Quick Reference guide


• Operation manual
