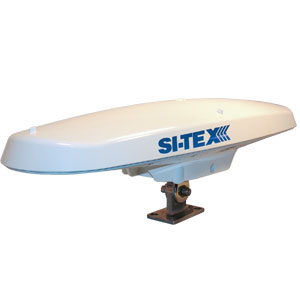

Sitex Vector Pro G2 Compass IMO Certified GPS Compass

Sitex Vector Pro G2 Compass IMO Certified GPS Compass

Si-tex Vector Pro G2 GPS Compass

Model: VECTOR PRO G2

• The rugged enclosure combines GPS’ Crescent Vector board and two multipath-resistant antennas for simple installation


• The half-meter length smart antenna mounts easily to a flat surface or pole


• The stability and maintenance-free design of the Vector Pro replaces traditional gyrocompasses at a fraction of the cost


• IMO Wheelmarked for Commercial applications

Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.

Specifications

GPS SENSOR SPECIFICATION

Receiver Type
Twin Receivers w/ L1, C/A code, with carrier phase smoothing

Channels
Two 1?channel, parallel tracking, (Two 10- ?channel when tracking WAAS)

Update Rate
Standard 20 Hz Adjustable (position and heading)

Horizontal Accuracy
< 0.6 m 95% confidence (*
< 2.5m 95% confidence (aiutonomous, no SA)**

Heading accuracy
<0.3° rms

Pitch/roll accuracy
< 1° rms

Rate of turn
90°/s max

Start up time
< 60s typical

Heading fix
< 20s

Satellite reacquisition
< 1s

Beacon Sensor Specifications (G2B version)

Channels
2-channel parallel tracking

Frequency range
283.5 to 325 kHz

Operating modes
Automatic (signal strength or range) and manual

Compliance
IEC 611 08-4 beacon standard

Communications

Srial ports
2 full duplex RS-232 and 2 half duplex RS-422

Data I/O protocol
NMEA 0183

Enviromental

Operating temperature rage
-30°C to +70°C

Humidity
100% non condensing

Input voltage
9-36vDC

Power consumption
<5w

Isolation
Power supply isolated fromserial ports

Mechanical

Dimensions
23.6" x 6.3" x 7.1"
