Xantrex Echo Charge 12/24VOLT
Xantrex Echo Charge 12/24VOLT
Xantrex Echo Charge 12/24VOLT

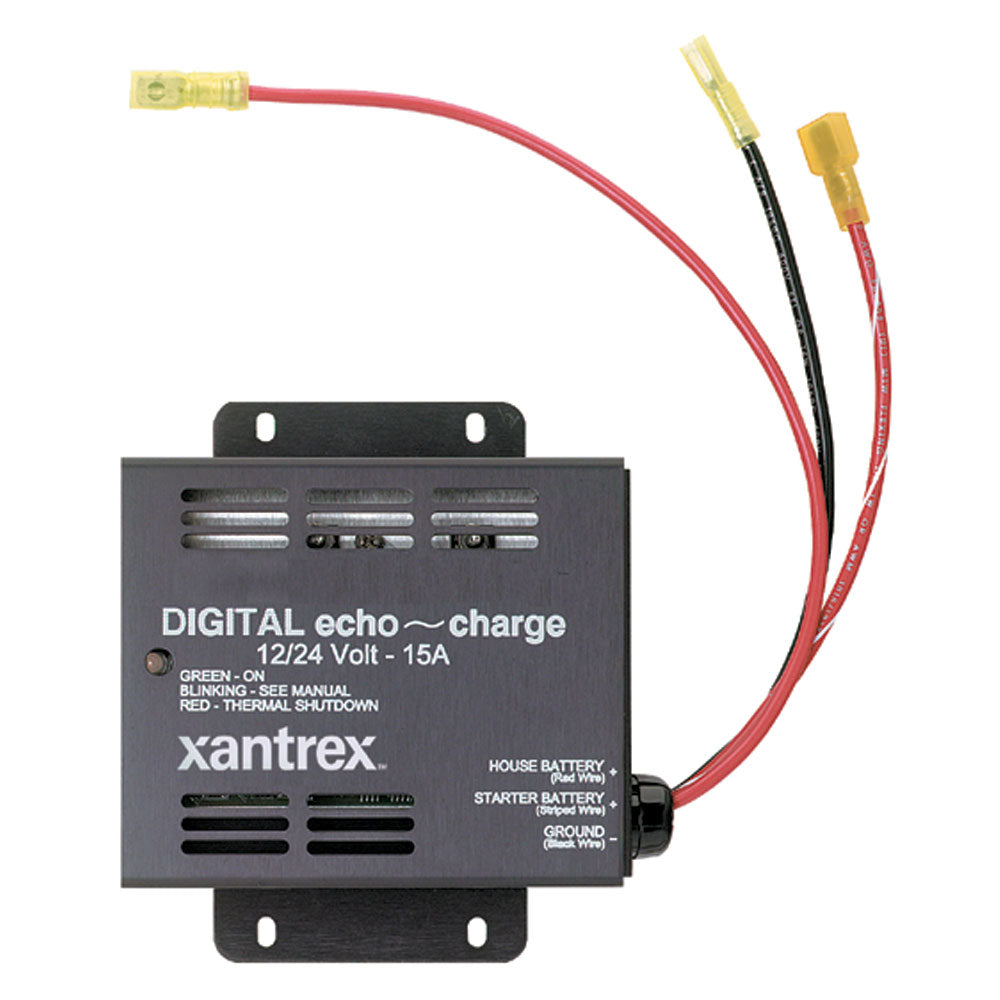

Xantrex Echo Charge Auxiliary Charger
Model: 82-0123-01- 15 A maximum charge current
- Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
- Automatically switches on/off without affecting the in-house battery bank or over-charging
- Utilizes excess current from the primary charging source
- Built-in thermal and over-current circuits
- Reverse polarity protection
- Easy three wire installation
Xantrex’ digital echo~charge (part#82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echo~charge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echo~charge is limited to 15 amps.
SpecificationsSwitch ON voltage (12 VDC mode)
13.0 VDC
Switch ON voltage (24 VDC mode)
26.0 VDC
Output amps
15.0 A (maximum)
Voltage limiting (12 VDC mode)
14.4 VDC ±1%
Voltage limiting (24 VDC mode)
28.8 VDC ±1%
Dimensions (HxWxD)
5.5 x 4.5 x 1.25"
