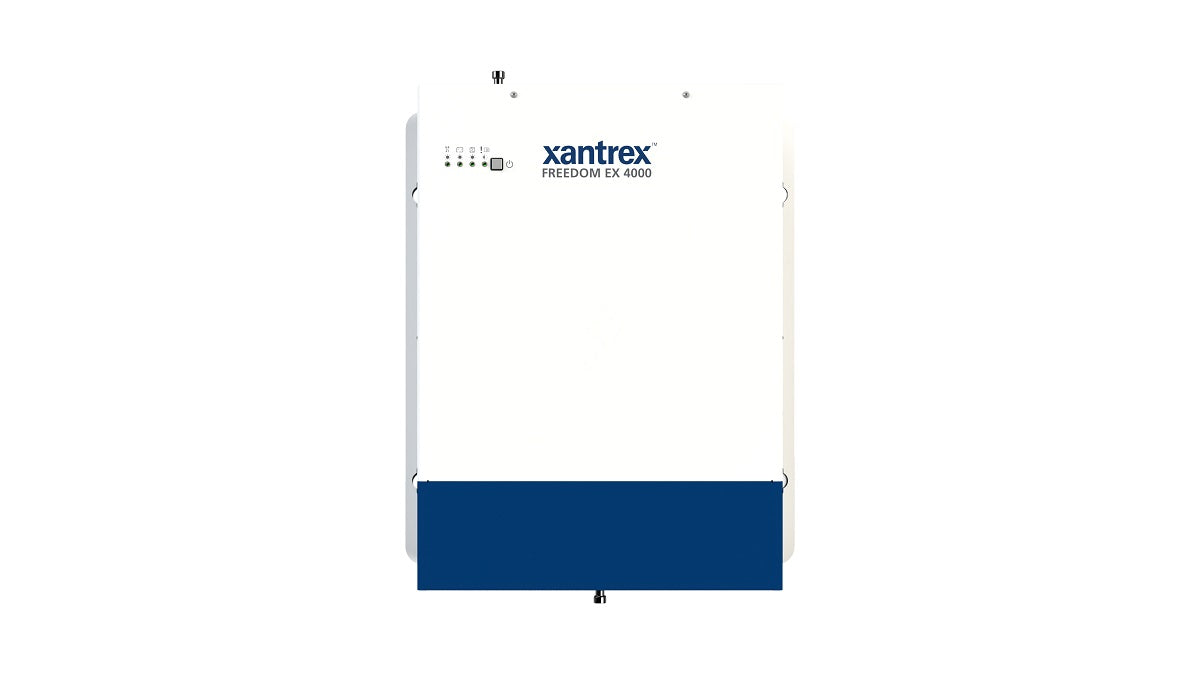

Xantrex Freedom EX4000 4000W Marine Inverter Charger 48vDC in 120vAC Out
Xantrex Freedom EX4000 4000W Marine Inverter Charger 48vDC in 120vAC Out
Xantrex Freedom EX4000 4000W Marine Inverter Charger 48vDC in 120vAC Out
Xantrex Freedom EX 4000 Inverter/Charger with 48VDC-to-12VDC Converter
Model: 820-4080-41- Stack up to 3 units in parallel; up to 2 units in series
- 48VDC to 12VDC converter output
- Highly configurable charger specifically designed for lithium ion batteries
- Built-in 50A Transfer Relay
- Extended Surge Rating to 2X continuous power for 5 seconds
- True Sine Wave AC Power
- Ignition Control Feature to turn inverter on/off via a 12VDC signal
The new FREEDOM EX 4000 is a truly unique, true sine wave power solution packing a powerful 48VDC, 4000W (8000W [5s]) inverter, 80A 48VDC battery charger, 50A transfer relay and a 48VDC to 12VDC, 45A converter inside one box. Designed for mobile applications that utilize 48VDC battery systems, the FREEDOM EX 4000 is designed to work as a standalone AC and DC power solution or supplement an existing generator to create a hybrid system. The FREEDOM EX 4000 features the most widely used communication protocols — RV-C (RV), enabling it to be used in virtually any application that requires integration with 3rd party MFPs and software.
SpecificationsELECTRICAL SPECS - INVERTER
AC Output Operating Voltage Options
105 - 130VAC
Continuous Output Power
Continuous Power 4000 W @40 C True sine wave (TSW) at 120Vac
Continuous AC Output Current
33A
Surge Power
8000W(5 sec)
Frequency
60Hz
ELECTRICAL SPECS - BATTERY CHARGER
Nominal DC Output Voltage
48VDC
Charger Voltage Range
40 - 64VDC
Maximum DC Output Current (user configurable down to 5 A)
80A
Supported Battery Types
Flooded, Gel, AGM, Lithium Ion, Custom
ELECTRICAL SPECS - PASS-THROUGH
AC Input Voltage:
Single-phase (L1 - N and L2 - N)
80 - 138Vac
Split-phase* (L1 - L2)
160 - 276Vac
Frequency (input/output)
60Hz
Continuous AC current (input/output)
40A
ELECTRICAL SPECS - 12 VDC POWER SUPPLY
Nominal DC Output Voltage (fully regulated)
13.5VDC
Maximum DC Output Current
45ADC continuous (at 77 F (25 C) ambient)
Typical Application* Powering
12 VDC Loads
ELECTRICAL SPECS - COMMUNICATIONS SUPPORTED
Recreational Vehicles (RV)
RV-C Protocol
Trucking Vehicles (future offering)
J-1939 Protocol
Marine Vessels (future offering)
NMEA-2000 Protocol
GENERAL SPECS
Operating Temperature Range
14 to 140 F (-10 to 60 C), with output derated above 104 F (40°C)
Storage Temperature Range
-40 to 158 F (-40 to 70 C)
Operating Humidity Range
5 to 95% RH, non-condensing
Transfer Relay AC Current Rating
50A (40A continuous)
L x W x H
17.1in (434mm) x 14in (354mm) x 8.1in (205mm)
Net Weight
79.4lbs (36.0kg)
What's in the Box:
- Freedom EX 4000
- Installation guide
- pair of ½" bushings
- pair of ¾" bushings
- one network terminator
