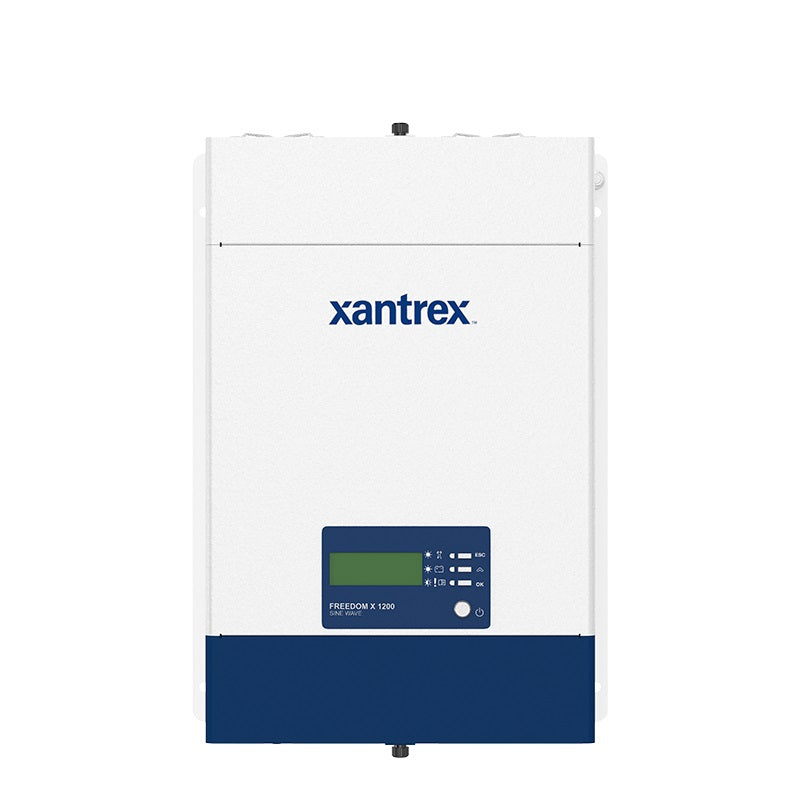

Xantrex Freedom X Pro 1200 1000 watt 120AC 12v DC Inverter
Xantrex Freedom X Pro 1200 1000 watt 120AC 12v DC Inverter
Xantrex Freedom X Pro 1200 1000 watt 120AC 12v DC Inverter
Model: 806-1212-05Its rugged, industrial design ensures optimum performance in all conditions. Quick connect terminals at AC input & output and pre-wired pigtails cables enable fast and easy installation on the assembly line. Conformal-coated circuit boards and heavy duty metal casing make the FREEDOM X 1200 ideal for mobile applications. It also features true sine wave output, 2x continuous power surge rating, built-in transfer switch and low battery voltage shutdown among other features. The FREEDOM X 1200 Pro has built-in communication card for integration with third-party monitoring and control display panels through RV-C connectivity.
SpecificationsOutput Power (continuous)
1200 W
Surge Rating
2400 W
Output Voltage Range
110—125 Vac
Output Frequency Regulation (user configurable)
50/60 Hz
Output Wave Form
True Sine Wave
Efficiency (full load)
> 86%
Peak Efficiency
> 91%
No-load Input Power (producing output voltage)
< 10 W
Off Mode Current Draw (display off)
< 4 mA
AC Input Operating Voltage Range
95—130 Vac
AC Transfer Relay
30 A
DC Input Operating Voltage Range
10.5—16.5 Vdc
Transfer Time
10—20 ms
Battery Voltage (nominal)
12 Vdc
Low Battery Cut-out
Adjustable from 10.5—12.1 Vdc
Net Weight
10.4 lb (4.7 kg)
Dimensions
14.8 x 10.4 x 3.5" (376 x 263 x 91 mm)
