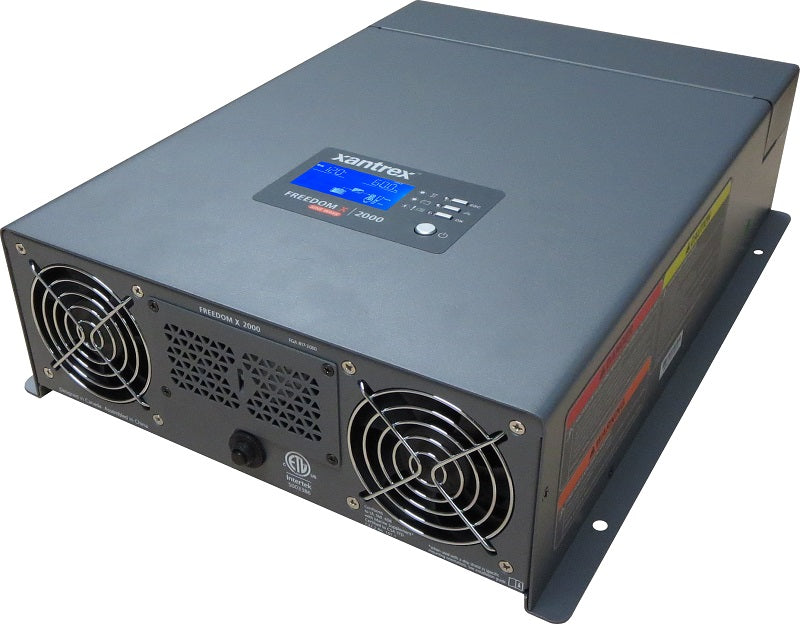

Xantrex Freedom X2000 2000W True Sine Wave Inverter

Xantrex Freedom X2000 2000W True Sine Wave Inverter

Regular price $764.95 USD
Regular price $882.76 USD Sale price $764.95 USD
Sale Sold out
Shipping calculated at checkout.

Xantrex Freedom X2000 2000W True Sine Wave Inverter

Xantrex Freedom X 2000 Watt True Sinewave Inverter

Model: 817-2000

  • Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
  • Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications

Electrical Specifications
Operating voltage
120, 110, 108 VAC

Continuous power
Continuous Power 2000 W @40 C True sine wave

Continuous current
16.7 Amps

Surge power
4000 watts

Frequency
60 Hz

Peak efficiency
91%

Full load efficiency
Greather than or equal to 87%

Operating voltage range
85-140 VAC

Safe Non-Operating voltage range
Up to 240VAC
General Specifications
Operating temperature range
-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)

Storage Temperature Range
-40 to 158 F (-40 to 70 C)

Humidity
5 to 95% RH, non-condensing

Transfer Relay Rating
30Amp

Operating voltage range
LBCO voltage - 18.0 VDC

Maximum Non-Operating Voltage
24.0 VDC

Nominal Voltage (Inverting)
12 VDC

Nominal Current at Full Load
192ADC

Dimensions
15.4"(390mm) x 10.8"(275mm) x 4.0"(102mm)

What's in the Box:

  • Freedom X unit
  • Plastic bushings for large DC cables
  • Pre-installed ground lug
  • Documentation
