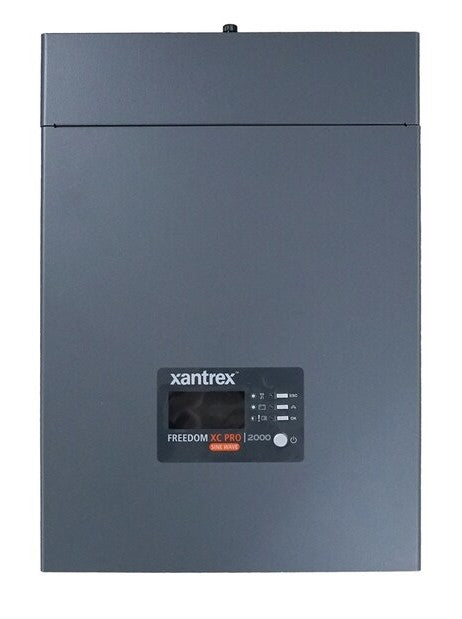

Xantrex Freedom XC Pro 2000 Watt Inverter, 100A Charger

Model: 818-2010

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads


• True Sine Wave AC Power: For operation of sensitive and motor loads


• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off


• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis


• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input


• Easily configurable settings to charge any lithium ion battery


• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers


• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V


• Battery Equalization: Maximizes flooded battery life


• Dead Battery Charging Down to 0 Vdc


• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications

Inverter Specifications

AC Output Operating Voltage Options
120, 110, 108 Vac

Continuous Output Power
Continuous Power 2000 W @40 C True sine wave (TSW)

Continuous AC Output Current
16.7A

Surge Power
4000 W ( ≤5 sec)

Frequency (Configurable)
60 (or 50) Hz

Peak Efficiency
91%

Full Load Efficiency
≥ 86%

Operating Input AC Pass-Through Voltage Range
85-140 Vac

Safe Non-Operating Input AC Voltage Range
Up to 240 Vac RMS

Power Factor at Full Charge Rate
> 98%

Battery Charger Specifications

Min Battery Voltage for Charging
0.0 Vdc

Max DC Output Voltage
18.0 Vdc (custom battery type)

Selectable DC Output Current
User Selectable: 5 - 100 A

Full Load Max AC Input Current
24 Arms

Max DC Charge Current
10A

General Specifications

Operating Temperature Range
4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)

Storage Temperature Range
-40 to 158 F (-40 to 70 C)

Operating Humidity Range
5 to 95% RH, non-condensing

Transfer Relay AC Current Rating
30 A surge, 24 A continous

DC Input Operating voltage range
10.1 - 18.0 VDC

DC Input Max Non-Operating Voltage
25.2 Vdc

DC Input/Output Nominal Voltage (inverting/ Charging)
12.0 Vdc

DC Nominal Current at Full Load
192Adc

L x W x H (without flanges)
5.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm)

L x W x H (with flanges)
16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm)

What's in the Box:

• Freedom XC Pro 2000


• Owners Manual


• Pre-installed DC ground enclosure lug


• Plastic bushings for large DC cables


• 2 AC knockout hole plugs
