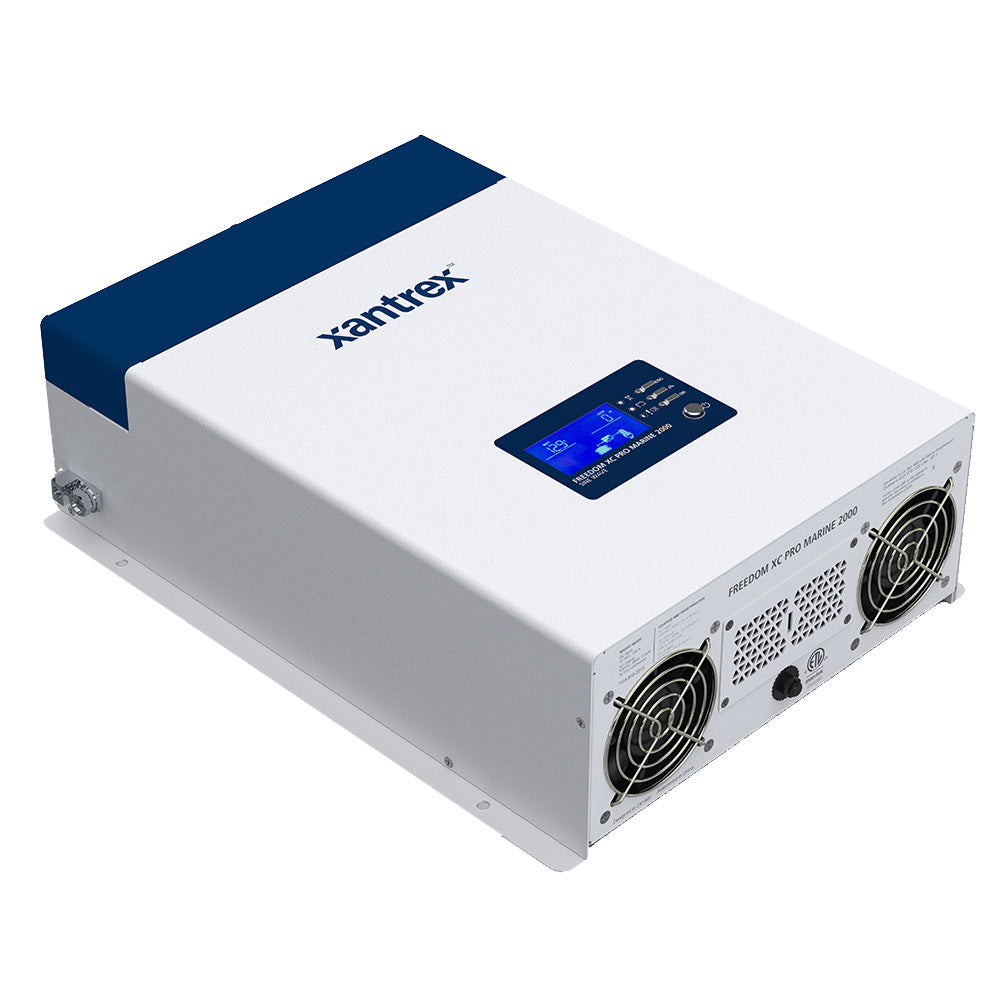

Xantrex Freedom XC PRO 2000 2000W Marine Inverter Charger 12vDC in 120vAC Out
Xantrex Freedom XC PRO 2000 2000W Marine Inverter Charger 12vDC in 120vAC Out
In stock
Estimated Shipping Date:
Xantrex Freedom XC PRO 2000 2000W Marine Inverter Charger 12vDC in 120vAC Out
Xantrex Freedom XC PRO Marine 2000
Model: 818-2015- Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
- Easily configurable settings to charge any lithium ion battery
- Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
- Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
- Battery Equalization: Maximizes flooded battery life
- Dead Battery Charging Down to 0 Vdc
- Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02). SEAMLESS INTEGRATION WITH MICRO-C NMEA 2000 CONNECTOR
The Freedom XC PRO Marine inverter/charger, supporting CANbus NMEA 2000 protocol, is the most versatile and flexi- ble AC power solution in the market today. It supports seamless integration with third party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.
SpecificationsELECTRICAL SPECS - INVERTER
AC Output Operating Voltage Options
120, 110, 108 Vac
Continuous Output Power
Continuous Power 2000 W @40 C True sine wave (TSW)
Continuous AC Output Current
16.7 A
Surge Power
4000 W (? 5 sec)
Frequency (Configurable)
60 (or 50) Hz
Peak Efficiency
91%
Full Load Efficiency
gretaer than or equal to 86%
DC Input Operating voltage range
10.1 - 18.0 VDC
DC Input Max Non-Operating Voltage
25.2 Vdc
DC Nominal Current at Full Load
192 Adc
ELECTRICAL SPECS - BATTERY CHARGER
Min Battery Voltage for Charging
0.0 Vdc
Max DC Output Voltage
18.0 Vdc (custom battery type)
Selectable DC Output Current
User Selectable: 5 - 100 A
Full Load Max AC Input Current
24 Arms
Max DC Charge Current (selectable down to 5A)
100A
Operating Input AC Pass-Through Voltage Range
85-140 Vac
Safe Non-Operating Input AC Voltage Range
Up to 240 Vac RMS
Power Factor at Full Charge Rate
> 98%
GENERAL SPECS
Operating Temperature Range
4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)
Storage Temperature Range
-40 to 158 F (-40 to 70 C)
Operating Humidity Range
5 to 95% RH, non-condensing
Transfer Relay AC Current Rating
30 A surge, 24 A continous
DC Input/Output Nominal Voltage (inverting/ Charging)
12.0 Vdc
L x W x H (without flanges)
15.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm)
L x W x H (with flanges)
16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm)
What's in the Box:
- Freedom XC PRO 2000
- one set of plastic bushings for large DC cables
- one pre-installed DC ground enclosure lug
- two AC knockout hole plugs
