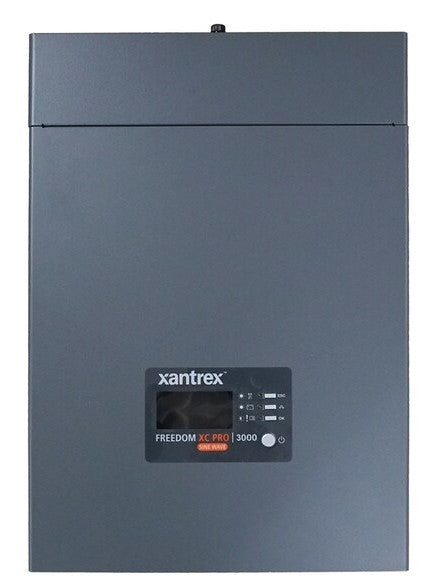

Xantrex Freedom XC PRO 3000 3000W Inverter 150A Charger 12vDC in 120vAC Out

Xantrex Freedom XC PRO 3000 3000W Inverter 150A Charger 12vDC in 120vAC Out

Xantrex Freedom XC Pro 3000 Watt Inverter, 150A Charger with 50A Transfer Switch

Model: 818-3010

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads


• True Sine Wave AC Power: For operation of sensitive and motor loads


• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off


• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis


• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input


• Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power


• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers


• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V


• Battery Equalization: Maximizes flooded battery life


• Dead Battery Charging Down to 0 Vdc


• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting


• Easily configurable settings to charge any lithium ion battery

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 150 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications

Inverter Specifications

AC Output Operating Voltage Options
120, 110, 108 Vac

Continuous Output Power
Continuous Power 3000 W @40 C True sine wave (TSW)

Continuous AC Output Current
25A

Surge Power
6000 W (? 5 sec)

Frequency (Configurable)
60 (or 50) Hz

Peak Efficiency
91%

Full Load Efficiency
greater than or equal to 84%

Operating Input AC Pass-Through Voltage Range
85-140 Vac

Safe Non-Operating Input AC Voltage Range
Up to 240 Vac RMS

Power Factor at Full Charge Rate
> 98%

Battery Charger Specifications

Min Battery Voltage for Charging
0.0 Vdc

Max DC Output Voltage
18.0 Vdc (custom battery type)

Selectable DC Output Current
User Selectable: 5 - 150 A

Full Load Max AC Input Current
25 Arms

Max DC Charge Current
150A

General Specifications

Operating Temperature Range
4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)

Storage Temperature Range
-40 to 158 F (-40 to 70 C)

Operating Humidity Range
5 to 95% RH, non-condensing

Transfer Relay AC Current Rating
50 A surge, 40 A continous

DC Input Operating voltage range
10.1 - 18.0 VDC

DC Input Max Non-Operating Voltage
25 Vdc

DC Input/Output Nominal Voltage (inverting/ Charging)
12.0 Vdc

DC Nominal Current at Full Load
304Adc

L x W x H (without flanges)
5.4"(390 mm) x 10.8"(275 mm) x 4.9"(125 mm)

L x W x H (with flanges)
16.0"(406 mm) x 12.0"(305 mm) x 4.9"(125 mm)

What's in the Box:

• Freedom XC Pro 3000


• Owners Manual


• Pre-installed DC ground enclosure lug


• Plastic bushings for large DC cables


• 2 AC knockout hole plugs
