Xantrex Freedom XC1000 1000W Inverter 50A Charger
Xantrex Freedom XC1000 1000W Inverter 50A Charger
Xantrex Freedom XC1000 1000W Inverter 50A Charger

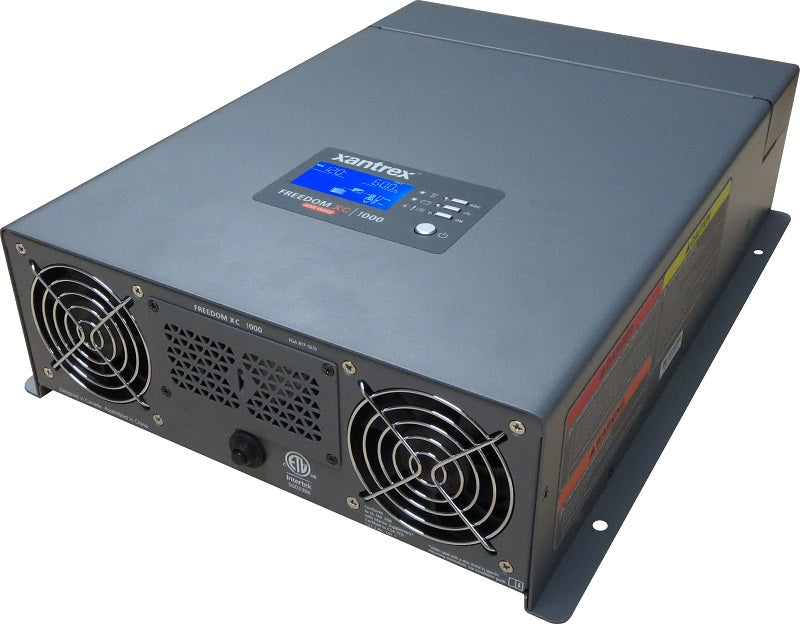

Xantrex Freedom XC 1000 Watt True Sinewave Inverter, 50Amp Charger
Model: 817-1050- Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
- Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring
- Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
- Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
- Battery Equalization: Maximizes flooded battery life
- Dead Battery Charging Down to 0 Vdc
- Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.
SpecificationsElectrical Specifications - Inverter
Operating voltage
120, 110, 108 VAC
Continuous power
Continuous Power 1000 W @40 C True sine wave
Continuous current
8.4 Amps
Surge power
2000 watts
Frequency
60 Hz
Peak efficiency
91%
Full load efficiency
Greather than or equal to 87.3%
Operating voltage range
85-140 VAC
Safe Non-Operating voltage range
Up to 240VAC
General Specifications
Operating temperature range
-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)
Storage Temperature Range
-40 to 158 F (-40 to 70 C)
Humidity
5 to 95% RH, non-condensing
Transfer Relay Rating
30Amp
Operating voltage range
LBCO voltage - 18.0 VDC
Maximum Non-Operating Voltage
24.0 VDC
Nominal Voltage (Inverting)
12 VDC
Nominal Current at Full Load
100ADC
Electrical Specifications - Battery Charger
Min Battery Voltage for Charging
0.0 VDC
Max Output Voltage
18.0 VDC (custom battery type)
Nominal Output Current
User selectable: 5 - 50A
Dimensions
14.2"(360mm) x 10.6"(270mm) x 3.7"(95mm)
What's in the Box:
- Freedom XC unit
- Pre-installed ground lug
- Documentation
