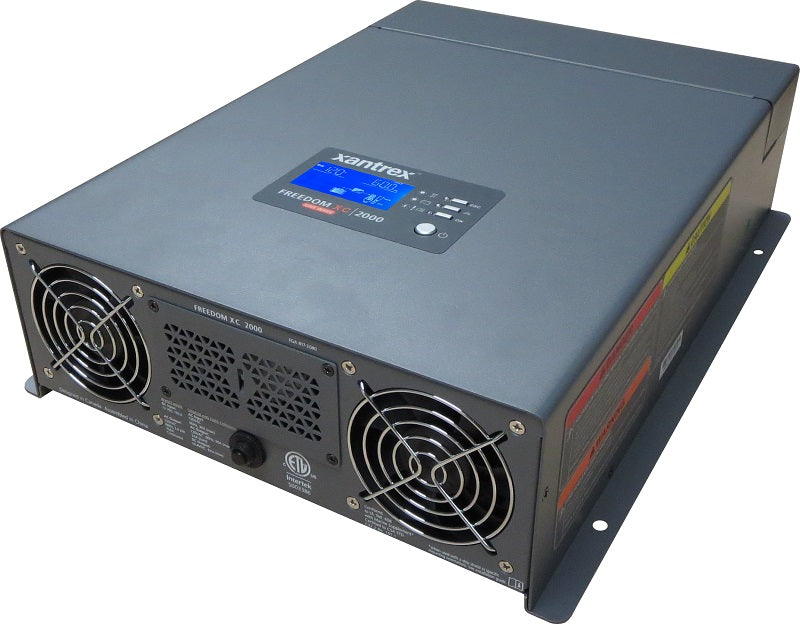

Xantrex Freedom XC2000 2000W Inverter 80A Charger

Xantrex Freedom XC2000 2000W Inverter 80A Charger

Xantrex Freedom XC 2000 Watt True Sinewave Inverter, 80Amp Charger

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads


• True Sine Wave AC Power: For operation of sensitive and motor loads


• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off


• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis


• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode


• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring


• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers


• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V


• Battery Equalization: Maximizes flooded battery life


• Dead Battery Charging Down to 0 Vdc


• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Operating voltage
120, 110, 108 VAC

Continuous power
Continuous Power 2000 W @40 C True sine wave

Continuous current
16.7 Amps

Surge power
4000 watts

Frequency
60 Hz

Peak efficiency
91%

Full load efficiency
Greather than or equal to 87.3%

Operating voltage range
85-140 VAC

Safe Non-Operating voltage range
Up to 240VAC

General Specifications

Operating temperature range
-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)

Storage Temperature Range
-40 to 158 F (-40 to 70 C)

Humidity
5 to 95% RH, non-condensing

Transfer Relay Rating
30Amp

Operating voltage range
LBCO voltage - 18.0 VDC

Maximum Non-Operating Voltage
24.0 VDC

Nominal Voltage (Inverting)
12 VDC

Nominal Current at Full Load
192ADC

Electrical Specifications - Battery Charger

Min Battery Voltage for Charging
0.0 VDC

Max Output Voltage
18.0 VDC (custom battery type)

Nominal Output Current
User selectable: 5 - 80A

Dimensions
15.4"(390mm) x 10.8"(275mm) x 4.0"(102mm)

What's in the Box:

• Freedom X unit


• Pre-installed ground lug


• one set of plastic bushings for large DC cables


• Documentation
