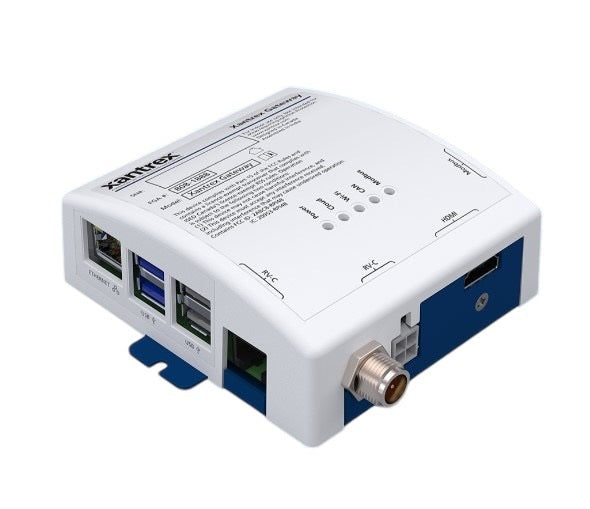

Xantrex Gateway Communication Device

Xantrex Gateway Communication Device

• Real-time update on the app


• Replace multiple displays with one


• Error alerts to monitor performance


• Coordinated system control

No more compatibility issues or complex setups. Xantrex Gateway gives you power at your fingertips to integrate, monitor, and control all your essential components — batteries, inverter/charger, and solar controller into one seamless system for effortless operation.

Xantrex offers a complete energy system that includes easy to use connectivity. The Xantrex gateway provides a coordinated view and easy drill-down access to control and monitor your system as-a-whole rather than single separate components. Remote monitoring with the WiFi and Bluetooth capabilities makes your life easier than ever before.

Input Power Terminals
2-Pin 16-24 AWG with flying lead and screw down terminal block

Input Voltage Range (SELV)
9—58 Vdc

Power Consumption
6.5 W excluding USB outputs

RV-C
RJ-45, 4-Pin Molex style connector

CAN
Micro-C Male

Modbus RS-485
RJ-45

HDMI
Standard

USB
2 x USB 2.0, 2 x USB 3.0

Wireless
Bluetooth, WiFi, WiFi Access Point

Housing / Mounting System
ABS Plastic, Wall-mount: 2-screw

IP Rating / Mounting Location
IP 20, NEMA Type 1, Indoor only

Temperature
Operating: -4—122 degrees F (-20—50 degrees C) - Storage: -40—185 degrees F (-40-85 degrees C)

Humidity
Less Than 95 percent, non-condensing

Dimensions (L x W x D)
4.5 x 4.3 x 1.5in (114 x 111 x 38 mm)

Weight
0.6 lb (300 g)
