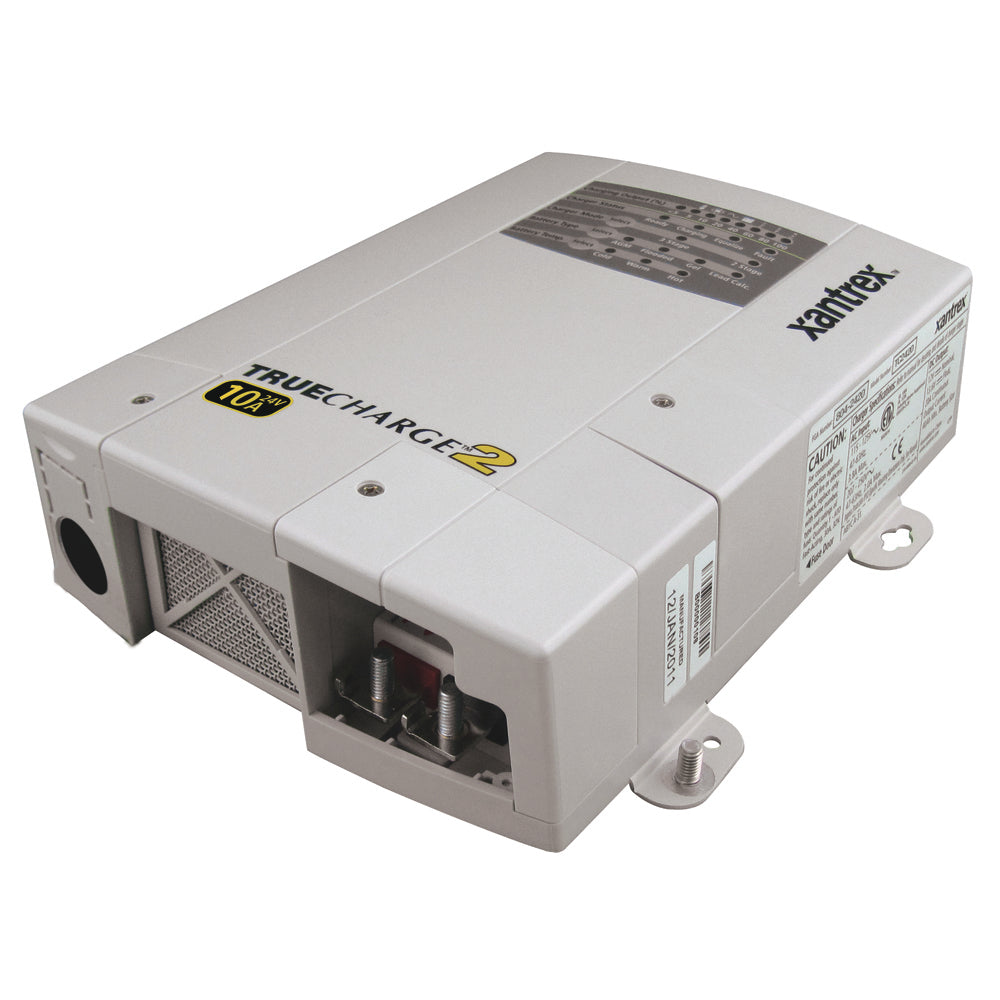

Xantrex Truecharge2 10AMP Single Bank 24v Charger

Xantrex Truecharge2 10AMP Single Bank 24v Charger

Xantrex TrueCharge 2 10Amp 24V

3 bank, 120/240v input

Model: 804-2410
UPC: 715535024109

• Microprocessor-controlled, multistage charging algorithms
• Settings for two and three-stage charging
• Settings for flooded, gel, AGM or lead-calcium batteries
• Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources
• Power factor corrected, temperature-compensated charging
• Battery-equalization feature
• Ability to charge batteries drained to extremely low voltage
• Reverse battery polarity protection
• Drip-proof design
• Over and under-temperature protection
• Battery overcharging protection
• DC over-voltage protection

Building on the success of the TRUECharge™2 12-volt battery chargers, Xantrex™ now offers 24-volt battery chargers designed to meet the specific needs of marine and commercial markets.

TRUECharge2 battery chargers are highly versatile and can be mounted in multiple positions, thanks to their inherent drip-free design characteristics. TRUECharge2 delivers outstanding low electrical interference, coupled with efficient, power factor corrected, multistage charging capability. Installation is a breeze, thanks to the easy-access AC and DC wiring compartments. The easy-to-read display can be augmented with an optional remote panel.

TRUECharge2 24-volt chargers are available with parallel stacking feature which allows you to double the output current when used with the optional REMOTE PANEL (part #808-8040-01).

Specifications

Electrical Specifications
Output current, nominal
10A
Output volatage - nominal, depending on battery type settings
Charge
28.4 - 31.0 Vdc

Float
26.8 - 27.6 Vdc

Equalize
32Vdc

DC Output connections
3

AC input voltage
90-265 Vac 47-63 Hz
120 Vac, 230 Vac, 240 Vac nominal

Temperature compensation
3 settings

Charger efficiency
> 80%

Battery type
Gel, Flooded, AGM, Pb-Ca

Minnimum recommended battery bank size
40sh
General Specifications
Operating temperature
0 to 60°C

Storage temperature
-40 to 80°C

Bbttery connection
Three positive terminals
One negative terminal

Warranty
two year

Input Voltage
90-265 Vac 47-63 Hz 120 Vac, 230 Vac, 240 Vac nominal

Dimensions
2.8"H x 6.7" W x 9.8" L
