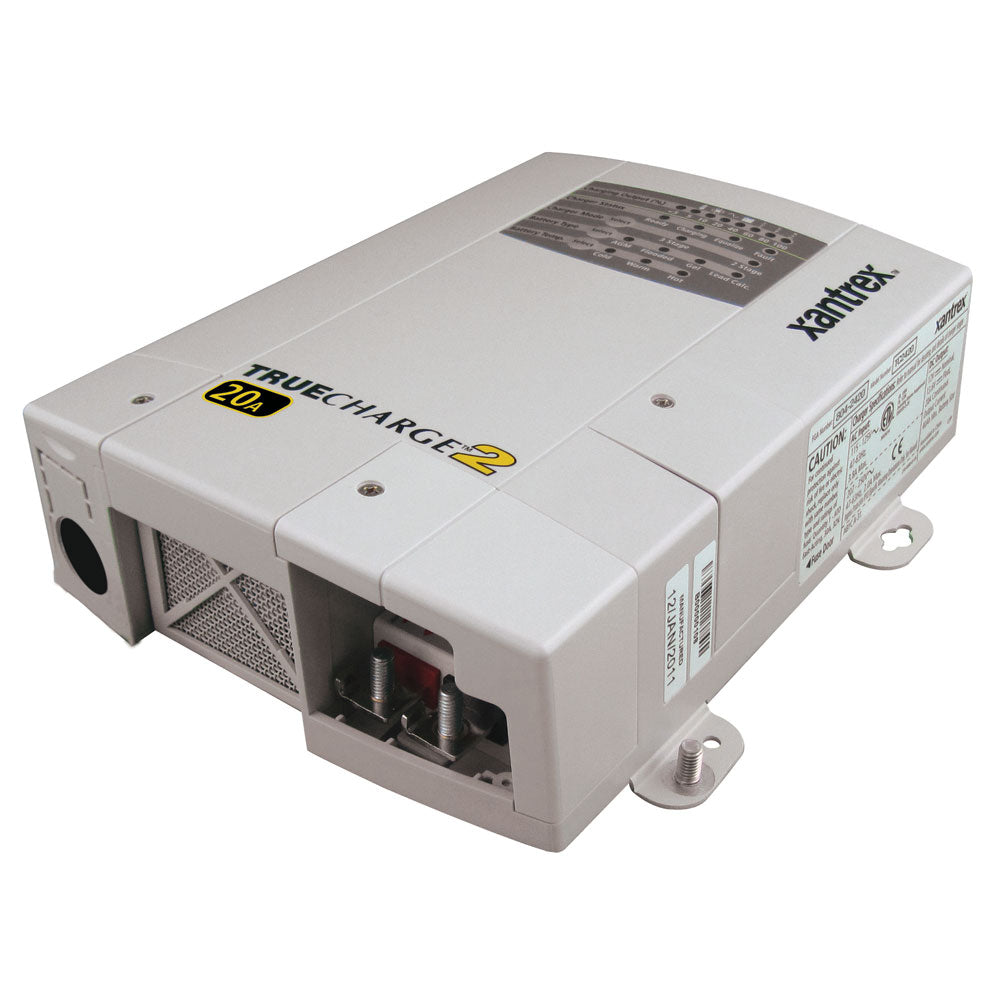

Xantrex Truecharge2 20AMP 3 Bank 12v Charger New Version

Xantrex Truecharge2 20AMP 3 Bank 12v Charger New Version

This unit is not compatable with the remote model 808-8040-00. It must use the newer 808-8040-01 remote.

TrueCharge2 Battery Chargers - 12 volt

Redesigned, High Performance, Worldwide Charging
Xantrex TrueCharge2 Battery Chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TrueCharge2 Battery Chargers feature low electrical interference and superior, efficient, power factor corrected multistage charging. TrueCharge2 Battery Chargers can be mounted virtually anywhere, given their unique drip-proof design. With certified ignition protection, even a gasoline engine room is a safe option for installation. Trouble-free installation is ensured with easy-to-access AC and DC wiring compartments and reverse-polarity battery protection.

Designed primarily for marine and commercial applications worldwide, TrueCharge2 Battery Chargers are unmatched for reliability. They are versatile enough to be used in a wide variety of conditions and locations. Auto-ranging AC input voltage capability (90 - 270 volts AC) makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display.

Performance Features

• 12-volt models available in 20 A, 40 A, and 60
• A Microprocessor-controlled, multistage charging algorithms
• Settings for flooded, gel, AGM or lead-calcium batteries
• Auto-ranging universal input voltage (90-270 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources
• Temperature-compensated charging
• Power factor corrected for efficient charging
• Battery-equalization feature
• Ability to charge 'dead' batteries

Protection Features

• Reverse battery polarity protection
• Drip-proof design
• Over and under-temperature protection
• DC over-voltage protection
• Battery overcharging protection
• Ignition protection



General Specifications Output Voltage ( Nominal Depending on settings)   Charge 14.2 - 15.5 Vdc Float 13.4 - 13.8  Vdc Equalize 16 Vdc DC output connections 3 AC Input Voltage 90-265 VAC 47-63 Hz 120VAC, 230 Vac, 240vac Nominal Temperature compensation Three settings or remote battery temperature sensor Charger effinciency >80% Battery Types Gel, Flooded, AGM, and Pb-Ca Operating temperature 0-65°C Storage temperature -40-80 C Battery connections three positive terminal one negative terminal Warranty 2 years Output Current TrueCharge 20 20 Amps TrueCharge 40 40 Amps TrueCharge 60 60 Amps Minimum Recommended battery bank size TrueCharge 20 40 Ah TrueCharge 40 80Ah TrueCharge 60 120Ah Dimensions TrueCharge 20 and 40 2.8" x 6.7" x 9.8" TrueCharge 60 3.5" x 6.7" x 13.4" Weight TrueCharge 20 and 40 4.8 lbs TrueCharge 60 9.9lbs
