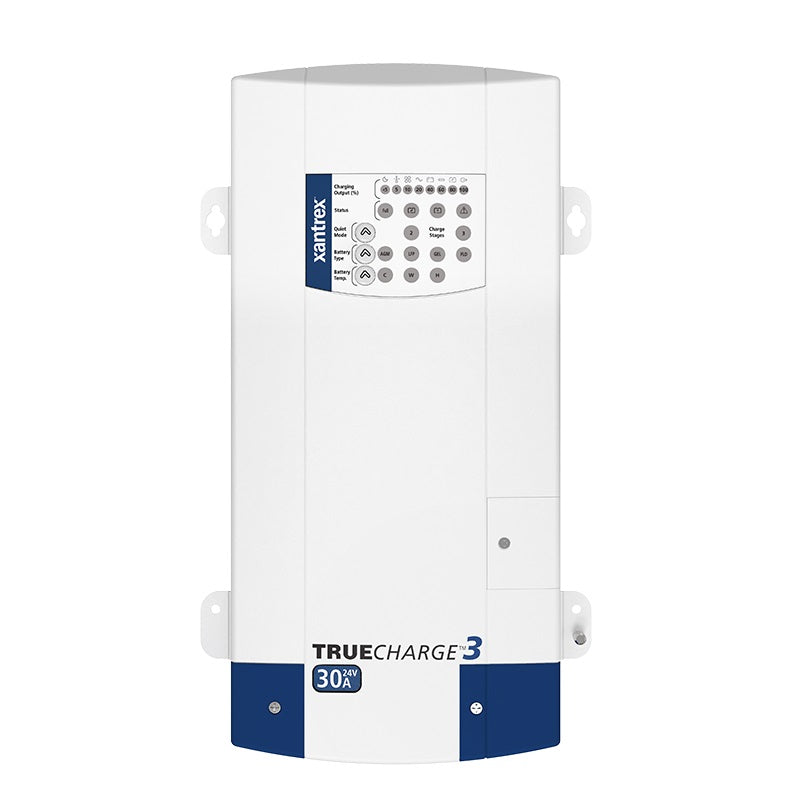

Xantrex Truecharge3 30 Amp 3 Bank 24v Charger

Xantrex Truecharge3 30 Amp 3 Bank 24v Charger

• Lithium-ion battery compatible


• Automatic 3-stage battery charger


• Parallel stack up to 2 chargers


• Circuit breaker protection

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient, power factor corrected multistage charging. Thanks to their inherent drip-proof design characteristics, these chargers can be mounted in multiple positions. Unlike it’s predecessors, TRUEcharge3 is Lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90—265 Vac, 47—63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line

Output current (nominal)
30 A

Charge
28.4 — 31.0 Vdc

Float
26.8 — 27.6 Vdc

Equalize
32 Vdc

DC output connections
Three

AC input voltage
90-265; Vac 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal

Temperature compensation
Three settings

Charger efficiency
Greater Than 80 percent

Battery type
Gel, Flooded, AGM, Lithium-Ion

Minimum recommended battery bank size
60 Ah

Operating temperature
0—60 degrees C (32—140 degrees F)

Storage temperature
-40—80 degrees C (-40—176 degrees F)

Battery connection
Three positive terminals, One negative terminal

Weight
9.9 lb (4.5 kg)

Warranty
Two year

Dimensions
3.5 x 6.7 x 13.4in (90 x 170 x 340 mm)
